The NLAS3699BMN1R2G is a high-performance, dual SPDT (Single Pole Double Throw) analog switch from ON Semiconductor, a leading provider in energy-efficient electronics innovations. This analog switch is designed to provide precision and flexibility, making it an ideal choice for a wide range of applications including signal routing, data acquisition systems, and communication devices.

Key Features

• Low Voltage Operation: The device operates at a low voltage range of 1.65V to 4.5V, making it suitable for portable and battery-powered applications where power efficiency is critical.
• High Bandwidth: With a bandwidth of 300 MHz, the NLAS3699BMN1R2G ensures minimal signal distortion and can be used in high-speed signal switching applications.
• Low On-Resistance: It features a low on-resistance (RON) of typically 4.5Ω at 4.5V VCC, which reduces power loss and improves signal integrity.
• Low Crosstalk: Designed with low crosstalk characteristics, this component minimizes interference between signal paths, enhancing overall system performance.
• ESD Protection: The switch includes robust Electrostatic Discharge (ESD) protection, safeguarding the device against static damage during handling and operation.

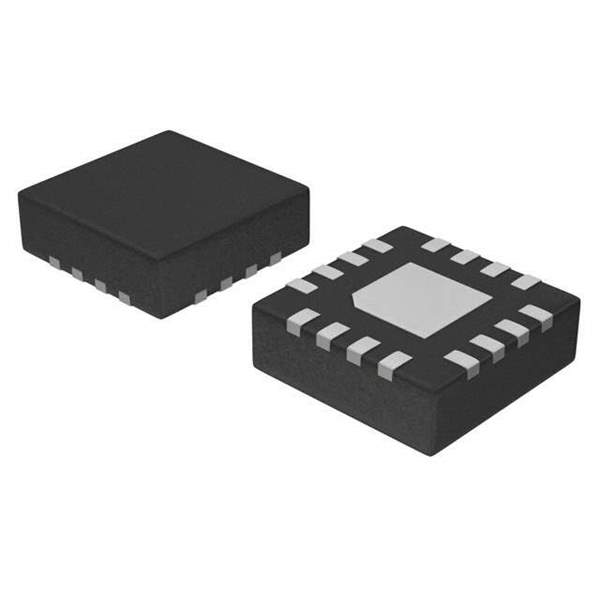

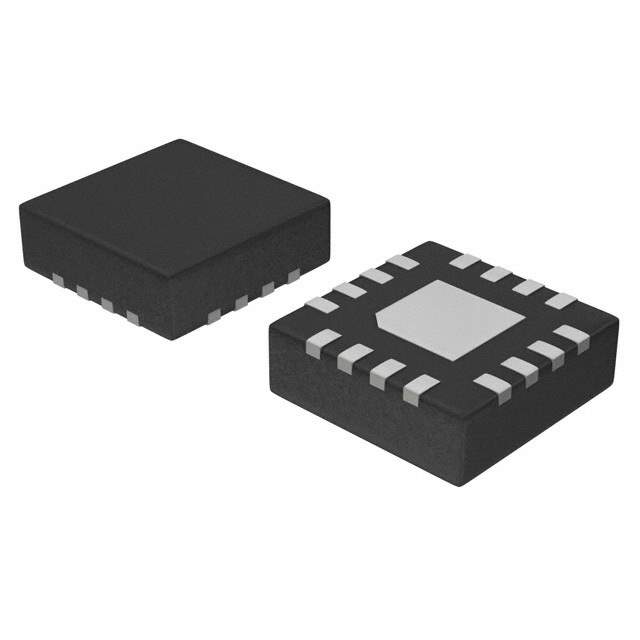

• Compact Packaging: The NLAS3699BMN1R2G is available in a space-saving micro-miniature package, making it well-suited for applications where board space is at a premium.

Applications

The versatility of the NLAS3699BMN1R2G allows it to be utilized in a variety of applications, such as:

• Audio and video signal routing
• Cellular phones and PDAs
• Portable test and measurement equipment
• Data acquisition systems
• Medical devices
• Communication systems

Quality and Reliability

ON Semiconductor is committed to the highest standards of quality and reliability, and the NLAS3699BMN1R2G is no exception. It is manufactured using a robust silicon process, ensuring long-term reliability and performance in the most demanding conditions. Additionally, it is RoHS compliant and lead-free, reflecting ON Semiconductor's dedication to environmental sustainability.

With its combination of low power operation, high-speed switching, and small form factor, the NLAS3699BMN1R2G from ON Semiconductor represents a versatile and efficient solution for modern electronic switching needs.
