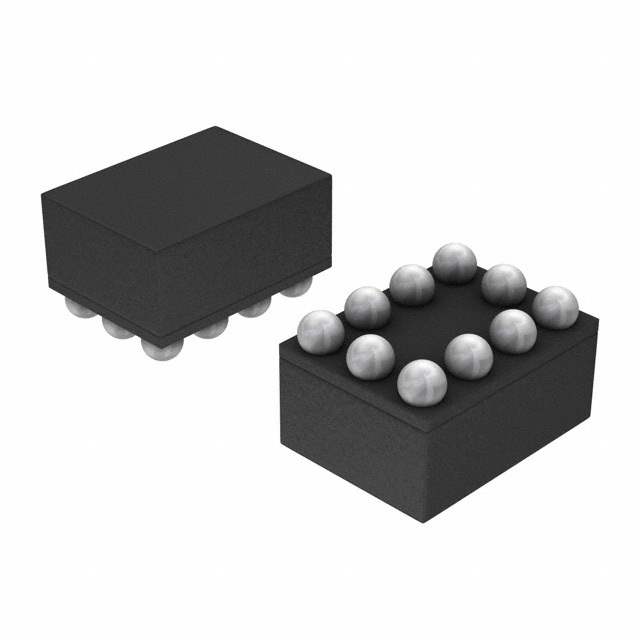

The NLAS4684FCT1 from ON Semiconductor is a high-performance, low-voltage dual single-pole double-throw (SPDT) analog switch designed to provide efficient and reliable switching solutions for a wide range of applications. This device is particularly well-suited for portable and battery-powered devices due to its low power consumption and operational efficiency.

Key Features

• Low Voltage Operation: The NLAS4684FCT1 operates at a low voltage range of 1.65V to 4.3V, making it ideal for portable electronics that require efficient power management.
• Low On-Resistance: It features a low on-resistance (RON) of typically 0.5 Ohms at 2.7V, ensuring minimal signal distortion and power loss during switching.
• High Current Handling: The device can handle continuous current up to 300 mA, allowing it to be used in applications with higher current requirements.
• Wide Bandwidth: The NLAS4684FCT1 offers a wide bandwidth, which supports fast switching speeds and is suitable for high-frequency signal switching.
• ESD Protection: Electrostatic discharge (ESD) protection is included to enhance the durability and longevity of the device in challenging environments.
• Compact Packaging: The switch comes in a space-saving SC-88A (SC-70-6) package, which is ideal for applications with limited PCB space.

Applications

The versatility of the NLAS4684FCT1 makes it an excellent choice for a variety of applications, including:

• Audio and video signal routing
• Data acquisition systems
• Portable communication devices
• Power routing
• Medical equipment
• Test and measurement equipment

Conclusion

ON Semiconductor's NLAS4684FCT1 is a highly reliable and efficient solution for designers looking to incorporate a dual SPDT analog switch into their low-voltage applications. Its low on-resistance, high current handling, and wide bandwidth make it a versatile component that enhances performance across a broad spectrum of electronic devices. The compact form factor and ESD protection further ensure that this switch can be integrated into the most demanding and space-constrained environments without compromising on functionality.
