ON Semiconductor NLAS5157MUTCG - High-Performance Analog Switch

The NLAS5157MUTCG is a state-of-the-art analog switch developed by ON Semiconductor, designed to deliver high performance in a wide range of applications. This advanced switch is a perfect solution for systems requiring low on-resistance, low crosstalk, and high bandwidth. It is commonly used in signal routing, data acquisition systems, and communication devices.

Key Features

• Low On-Resistance: The NLAS5157MUTCG boasts an exceptionally low on-resistance, typically around 0.5 Ohms. This feature ensures minimal signal distortion and power loss, making it ideal for high-fidelity audio applications and precision analog signal processing.
• Wide Voltage Range: It operates over a broad voltage range from 1.65V to 4.3V, allowing it to be used in various systems without the need for level shifting, thus simplifying design and reducing component count.
• High Bandwidth: With a bandwidth greater than 300 MHz, this switch can handle high-speed signals without significant attenuation, making it suitable for video signal switching and high-speed data lines.
• Single Supply Operation: The device is capable of operating from a single power supply, which is a convenient feature for compact and battery-powered devices.
• Bidirectional Switch: The NLAS5157MUTCG can pass signals in both directions, offering flexibility in signal routing within a circuit.
• ESD Tolerance: The device features built-in electrostatic discharge (ESD) protection, which enhances its robustness and reliability in harsh environments.

Applications

The NLAS5157MUTCG is versatile and can be used in a variety of applications, including:

• Audio and video switching
• Sample and hold circuits
• Relay replacement
• Signal gating
• Medical equipment
• Test and measurement systems

Package Information

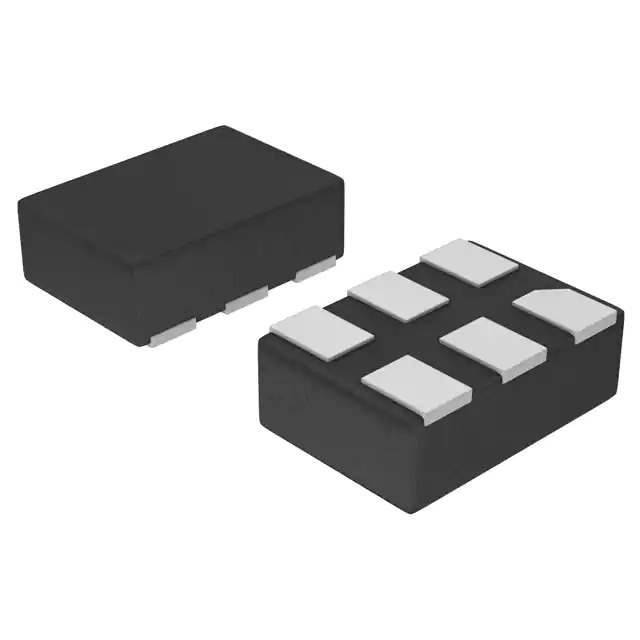

The NLAS5157MUTCG comes in an ultra-small µDFN package with a 2x2mm footprint, making it an excellent choice for space-constrained applications. Its compact size and low profile facilitate integration into portable and miniature devices without compromising performance.

With its robust feature set, the NLAS5157MUTCG from ON Semiconductor is an indispensable component for designers looking to enhance the performance and efficiency of their electronic systems.
