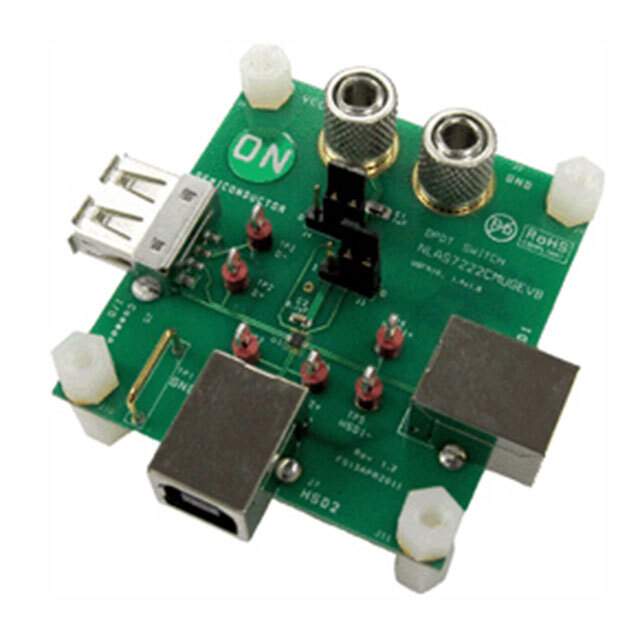

The NLAS7222CMUGEVB from ON Semiconductor is a comprehensive evaluation board designed to showcase the functionality and versatility of the NLAS7222 Dual SPDT (Single Pole Double Throw) analog switch. This high-performance switch is particularly well-suited for applications requiring low-voltage operation and low on-resistance.

Key Features

• Low Voltage Operation: The NLAS7222 operates at a supply voltage ranging from 1.65V to 4.3V, making it ideal for battery-powered and portable applications.
• Low On-Resistance: With an on-resistance of typically 0.5 ohms at 2.7V, the switch offers minimal signal distortion and ensures high signal integrity.
• High Current Handling: The device is capable of handling continuous current up to 300 mA, allowing it to be used in a wide range of high-performance applications.
• Break-Before-Make Switching: The NLAS7222 features break-before-make switching, which prevents signal overlap and ensures clean, glitch-free signal routing.

Applications

The NLAS7222CMUGEVB is ideal for evaluating the switch in various applications, including:

• Audio and video signal routing
• Data acquisition systems
• Communication systems
• Portable devices
• Medical equipment

Design and Layout

The evaluation board is designed with simplicity in mind, featuring a straightforward layout that allows for easy access to all the NLAS7222's pins and functions. Users can quickly set up the board to test the switch in their specific application context. The board includes additional test points for oscilloscope probes, facilitating detailed analysis of the switch's performance under various conditions.

Support and Documentation

ON Semiconductor provides extensive support and documentation for the NLAS7222CMUGEVB, including detailed datasheets, application notes, and technical guides. This ensures that engineers can maximize the potential of the evaluation board and the NLAS7222 switch in their designs.
