ON Semiconductor NTD5806NT4G - High-Performance Power MOSFET

The ON Semiconductor NTD5806NT4G is a state-of-the-art power MOSFET designed to deliver high efficiency and reliability for a wide range of applications. This particular MOSFET is part of ON Semiconductor's high-performance power solutions, offering advanced features that make it an ideal choice for power management tasks.

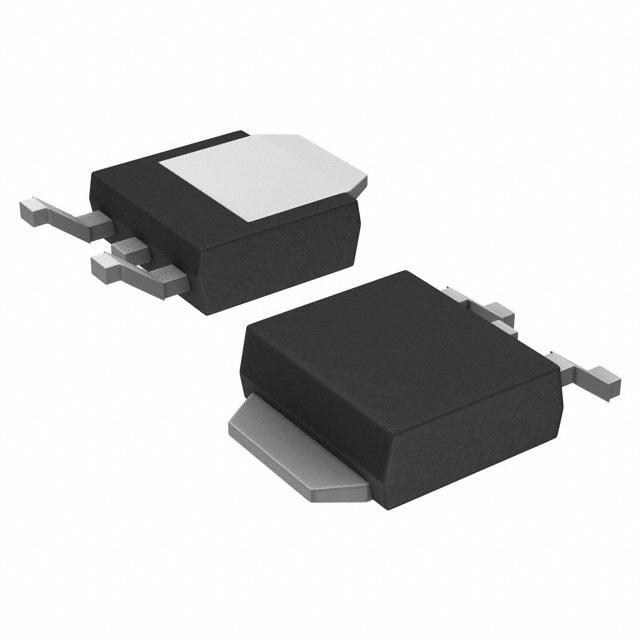

The NTD5806NT4G is a N-channel MOSFET that comes in a compact and robust TO-252 (DPAK) package, ensuring a minimal footprint on the PCB while providing excellent thermal performance. With a drain-to-source voltage (Vdss) of 60V and a continuous drain current (Id) of up to 48A, it is capable of handling high current applications with ease.

One of the key features of the NTD5806NT4G is its low on-resistance (Rds on) of just 7.8 mOhm at a gate voltage of 10V. This low Rds on reduces power losses during operation, enhancing the overall efficiency of the system in which it is used. Additionally, the device boasts a fast switching performance which is crucial for reducing switching losses in high-frequency power conversion systems.

Furthermore, the NTD5806NT4G is designed to endure rugged environments with its high tolerance to repetitive avalanche and single pulse avalanche energy ratings. This robustness makes it suitable for demanding applications such as automotive systems, power supplies, DC-DC converters, and motor control circuits.

For ease of implementation, this MOSFET also features logic level gate drive capability, meaning it can be driven directly from low-power microcontrollers or other logic devices without the need for additional driver circuitry. This simplifies the design and reduces component count.

In summary, the ON Semiconductor NTD5806NT4G is a powerful, efficient, and reliable MOSFET that offers a balanced performance for designers looking to optimize their power management systems. With its low Rds on, high current capability, and robust design, it is an excellent choice for a multitude of power applications.
