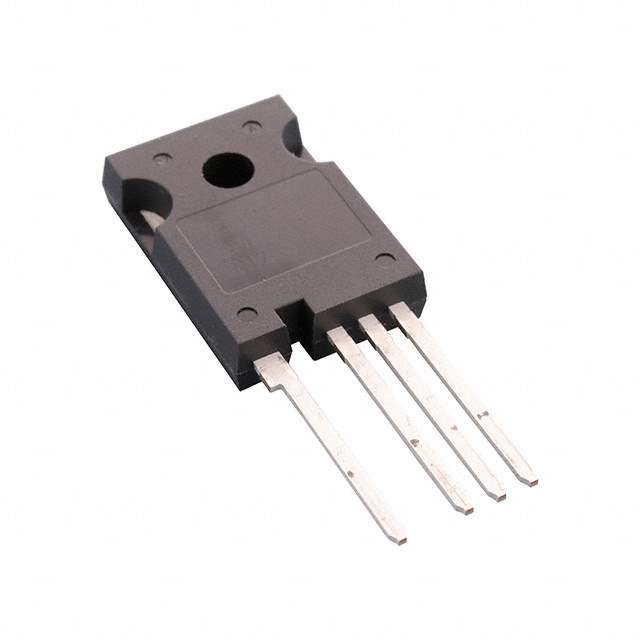

Product Overview: NTH4L020N120SC1 by ON Semiconductor

The NTH4L020N120SC1 is a state-of-the-art silicon carbide (SiC) N-Channel MOSFET designed and manufactured by ON Semiconductor, a company renowned for its innovative and reliable semiconductor solutions. This high-performance power MOSFET is specifically engineered to meet the demanding requirements of modern high-efficiency applications. With its advanced material properties, the NTH4L020N120SC1 offers superior switching performance, higher efficiency, and increased power density compared to traditional silicon-based MOSFETs.

Key Features

• Breakdown Voltage: The device boasts a high drain-to-source breakdown voltage of 1200V, making it suitable for high-voltage power applications.
• Low On-Resistance: With an on-resistance (R_DS(on)) of just 20 mΩ, this MOSFET ensures minimal conduction losses, leading to higher efficiency in power conversion systems.
• High-Speed Switching: The NTH4L020N120SC1 is capable of fast switching speeds, which is essential for reducing switching losses in power converters and inverters.
• Robustness: The robust design of this SiC MOSFET allows it to withstand harsh environments and ensures long-term reliability.
• Low Gate Charge: The low gate charge (Q_G) facilitates easier drive control and further contributes to the efficiency of the switching performance.

Applications

The NTH4L020N120SC1 is ideal for a wide range of power applications, including:

• Electric vehicle (EV) charging stations
• Power supplies for servers and telecommunications
• Solar inverters and energy storage systems
• Industrial motor drives and welding equipment

Product Benefits

Integrating the NTH4L020N120SC1 SiC MOSFET into your power systems can lead to significant improvements in performance and efficiency. The device's high breakdown voltage and low on-resistance ensure that power losses are minimized, leading to cooler operation and potential size reductions in cooling systems. Additionally, its fast switching capabilities reduce losses during power conversion, making it an excellent choice for applications requiring high switching frequencies.

In summary, the NTH4L020N120SC1 from ON Semiconductor represents a significant advancement in power MOSFET technology, offering designers a robust, high-efficiency solution for their high-voltage power applications.
