ON Semiconductor NTLLD4901NF Dual N-Channel Power MOSFET

The ON Semiconductor NTLLD4901NF is a state-of-the-art dual N-Channel Power MOSFET designed for high-efficiency power management applications. This robust component is ideal for compact and energy-sensitive electronics due to its low on-resistance and high switching speed.

Key Features

• Low On-Resistance: The NTLLD4901NF features an ultra-low on-resistance of just 30 mΩ at 10 V, which significantly reduces conduction losses and improves overall efficiency.
• High Switching Speed: With fast switching capabilities, this MOSFET minimizes energy loss during power conversion, making it suitable for high-frequency applications.
• Dual N-Channel Configuration: The dual N-Channel setup allows for flexibility in design, enabling the use of half-bridge or full-bridge topologies in power conversion circuits.
• PowerTrench® Technology: ON Semiconductor's proprietary PowerTrench® process technology enhances the device's performance by optimizing the cell structure for reduced gate charge and lower on-state resistance.

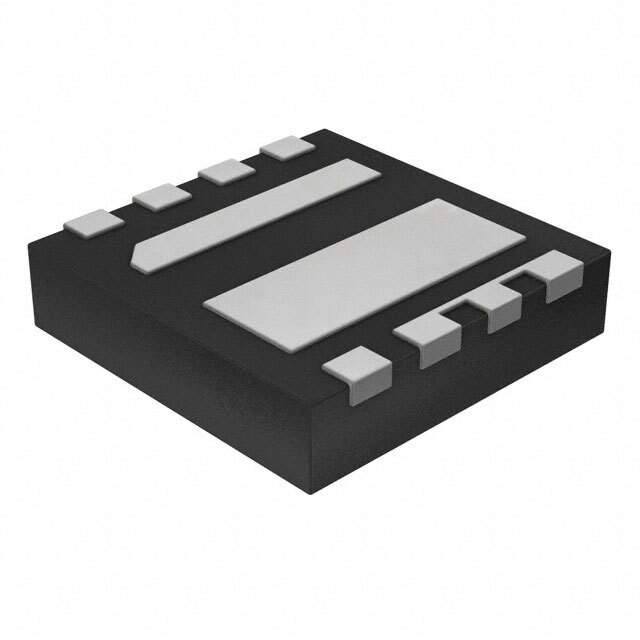

• Thermal Management: The NTLLD4901NF comes in a compact 6 x 5 mm² WDFN6 package, which provides excellent thermal performance and helps maintain stability under high current conditions.
• ESD Protection: Built-in ESD protection ensures the device's resilience against electrostatic discharges, enhancing its reliability in sensitive applications.

Applications

The ON Semiconductor NTLLD4901NF is versatile and can be used in a wide range of applications, including:

• DC/DC Converters
• Power Supply Modules
• Battery Management Systems
• Load Switching
• Motor Control Circuits
• Portable Electronic Devices

With its combination of efficiency, speed, and thermal performance, the NTLLD4901NF is an excellent choice for designers looking to optimize their power management solutions. Whether for consumer electronics, automotive systems, or industrial equipment, this MOSFET from ON Semiconductor delivers reliable and high-performance operation.
