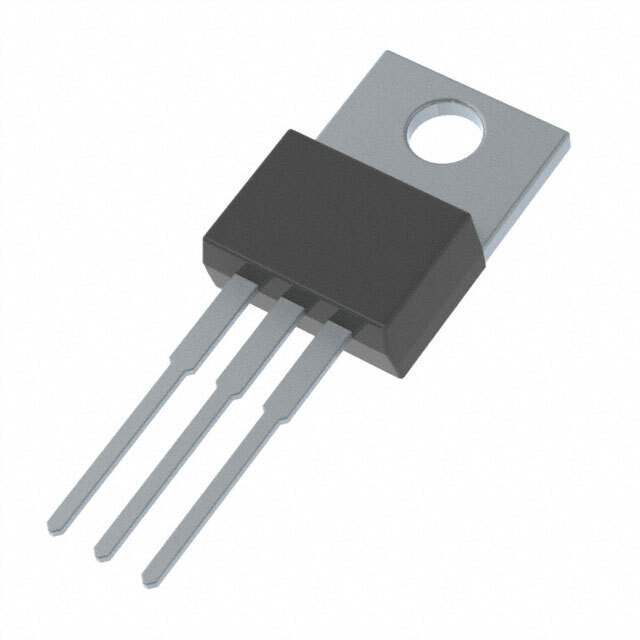

The ON Semiconductor NTP125N65S3H is a state-of-the-art power MOSFET designed for high-efficiency power conversion applications. This device is part of ON Semiconductor's high-performance NTP series, which is renowned for its exceptional quality and reliability. The NTP125N65S3H is engineered to meet the stringent demands of modern electronic systems, providing designers with a robust and flexible solution for their power management challenges.

Key Features

• High Current Capability: This MOSFET is capable of handling continuous drain currents up to 125A, making it suitable for high-power applications.
• Low On-Resistance (R<sub>DS(on)): With an on-resistance as low as 0.0039 ohms, this device ensures minimal power loss and high efficiency in operation.
• High Voltage Tolerance: It can withstand drain-source voltages up to 650V, providing ample headroom for voltage spikes and surges in demanding environments.
• Fast Switching Performance: The NTP125N65S3H is optimized for fast switching, reducing switching losses and improving performance in high-frequency power conversion circuits.
• Robust Body Diode: The device features a rugged body diode that can handle high-speed switching and reverse recovery, which is critical for applications such as synchronous rectification.

Applications

This MOSFET is ideal for a wide range of applications, including:

• Switch Mode Power Supplies (SMPS)
• Uninterruptible Power Supplies (UPS)
• Power Inverters
• Motor Drives
• Power Factor Correction (PFC) Circuits

Quality and Reliability

ON Semiconductor is committed to the highest standards of quality and reliability, and the NTP125N65S3H is no exception. It is built to provide long-term stability and performance, even under challenging conditions. The device is RoHS compliant and is designed with a low gate charge and reduced capacitance, which further enhances its performance and durability.

Conclusion

With its combination of high current capacity, low on-resistance, high voltage tolerance, and fast switching capabilities, the ON Semiconductor NTP125N65S3H Power MOSFET is an excellent choice for designers looking to improve power efficiency and reliability in their next-generation electronic systems.
