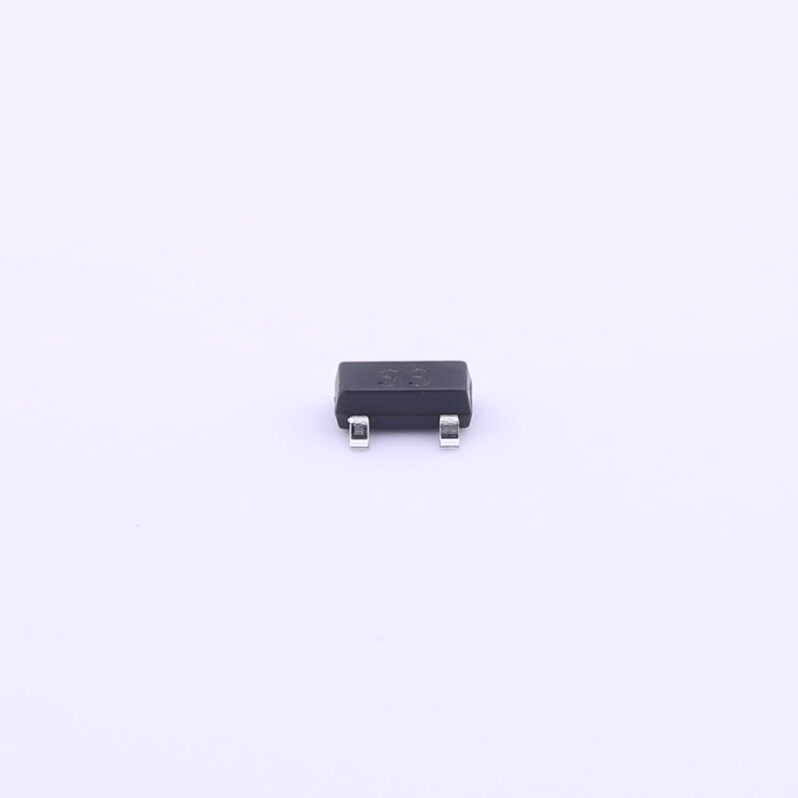

BSS138

Name: BSS138
Brand: ShenZhen SlkorMicro Semicon Co. Ltd
SKU: WS1330074
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BSS138
Manufacturer	ShenZhen SlkorMicro Semicon Co. Ltd
Catalog	FETs - Single
Description	50V 220mA 3.5Ω@10V,220mA 225mW 1.6V@1mA 1 N-channel SOT-23
Datasheet	BSS138 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1330074-BSS138
Package	Cut Tape (CT)
Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	50V
Current - Continuous Drain (Id) @ 25°C	200mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3.5 Ohm @ 220mA, 10V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	50 pF @ 10 V
Power Dissipation (Max)	300mW (Ta)
Operating Temperature	150°C (TJ)
Grade	-
Mounting Type	Surface Mount
Supplier Device Package	SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
Package	Tape & Reel (TR);Cut Tape (CT)
Current - Continuous Drain (Id) @ 25°C	220mA (Tj)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Gate Charge (Qg) (Max) @ Vgs	2.4 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds	30 pF @ 25 V
Power Dissipation (Max)	430mW
Operating Temperature	-55°C ~ 175°C
Current - Continuous Drain (Id) @ 25°C	170mA
Rds On (Max) @ Id, Vgs	3 Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id	1.6V @ 250µA
Input Capacitance (Ciss) (Max) @ Vds	27 pF @ 25 V
Power Dissipation (Max)	350mW (Ta)
Operating Temperature	-55°C ~ 155°C (TJ)
Supplier Device Package	SOT-23-3
Series	*
Current - Continuous Drain (Id) @ 25°C	220mA (Ta)
Ultra Librarian 3D Model	Ultra Librarian BSS138 CAD Model
