The NTSB30100S-1G from ON Semiconductor is a robust and efficient Schottky barrier rectifier designed for high-performance power conversion applications. This state-of-the-art semiconductor device is engineered to provide a perfect blend of low forward voltage drop and high surge current capability, making it an ideal choice for a wide range of electronic circuits.

Key Features

• High Surge Capability: The NTSB30100S-1G is capable of withstanding high surge currents, ensuring reliability and stability in applications that experience transient overloads.
• Low Power Loss: With its low forward voltage drop, this Schottky barrier rectifier minimizes power loss, enhancing overall system efficiency.
• High Current Rating: The device supports a continuous forward current of up to 30 A, making it suitable for high-current applications.
• High-Temperature Operation: It is designed to operate effectively over a wide temperature range, maintaining performance even under extreme conditions.

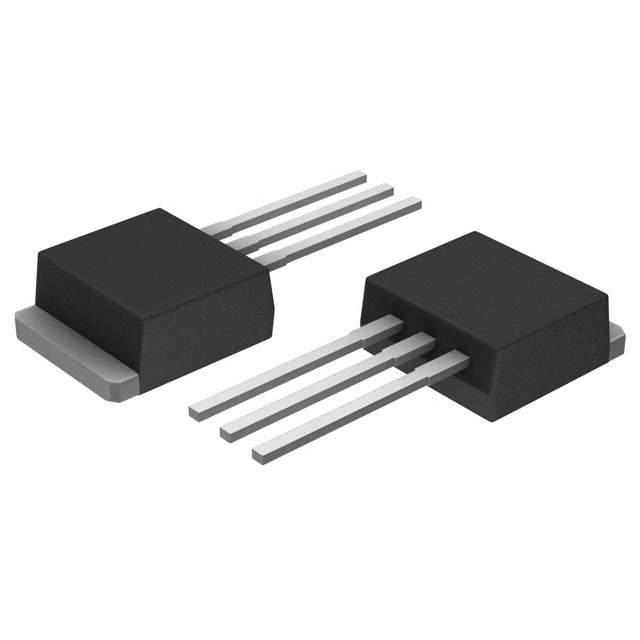

• Robust Package: Encased in a TO-220 package, the NTSB30100S-1G offers a compact and durable solution that is easy to mount on a printed circuit board (PCB).

Applications

The NTSB30100S-1G is versatile and can be used in various applications, including:

• Switching power supplies
• Converters
• Free-wheeling diodes
• Reverse battery protection
• Power management in portable and battery-powered products

Technical Specifications

Parameter Value Package TO-220 Forward Current (If) 30 A Forward Voltage Drop (Vf) Typically 0.74 V @ 15 A Reverse Voltage (Vr) 100 V Operating Temperature Range -55°C to +150°C

With its combination of efficiency, reliability, and thermal performance, the NTSB30100S-1G from ON Semiconductor is a superior choice for designers seeking a high-quality rectifier for their power management solutions.
