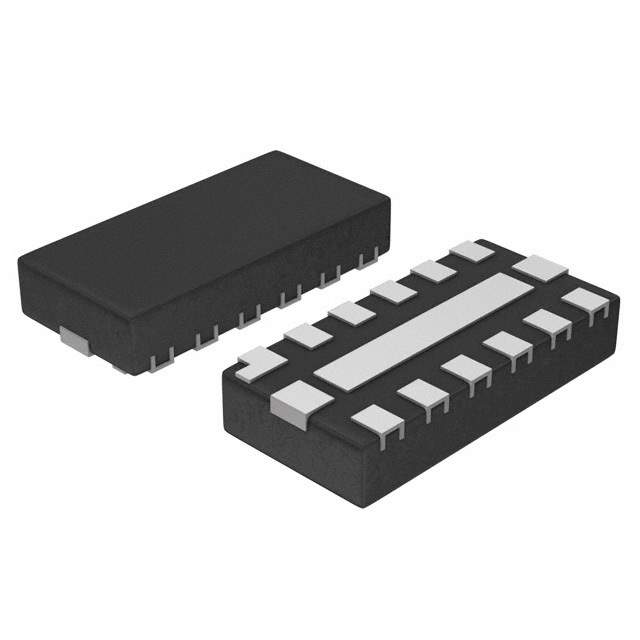

Product Overview: NUF6005MUT2G by ON Semiconductor

The NUF6005MUT2G is a state-of-the-art EMI filter with integrated ESD protection, designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This compact, high-performance component is engineered to provide superior electromagnetic interference (EMI) filtering and electrostatic discharge (ESD) protection in a single package, making it an ideal solution for space-constrained applications.

Key Features

• Integrated ESD Protection: The NUF6005MUT2G offers excellent ESD protection with a very low clamping voltage, safeguarding sensitive electronic components from electrostatic discharges.
• EMI Filtering: This product features Pi-style EMI filtering (C-R-C) that significantly reduces the noise on data lines, thereby improving the performance and reliability of electronic systems.
• Compact Design: With its ultra-small μDFN package, the NUF6005MUT2G is perfect for portable applications where board space is at a premium.
• Broadband Width: The filter is designed to operate over a wide frequency range, making it suitable for a variety of digital interfaces.

Applications

The versatility of the NUF6005MUT2G allows it to be used in a diverse array of electronic devices. Some common applications include:

• Mobile Phones
• Portable Electronics
• Data Lines for USB Interfaces
• MP3 Players
• Notebook Computers

Quality and Reliability

ON Semiconductor is committed to delivering high-quality products. The NUF6005MUT2G is no exception, offering reliable performance that meets the stringent requirements of the electronic industry. It is manufactured in compliance with industry standards, ensuring both robustness and functionality.

Technical Specifications

Some of the technical specifications of the NUF6005MUT2G include:

• Package: 10-pin μDFN (1.8x1.6 mm)
• Operating Temperature Range: -40°C to +85°C
• ESD Withstand Voltage: ±15 kV (air), ±8 kV (contact)
• Filtering: 3rd Order Pi Filter

For designers and engineers looking for a compact, high-efficiency EMI filter with integrated ESD protection, the NUF6005MUT2G from ON Semiconductor is an excellent choice. Its performance, size, and quality make it a go-to component for protecting and enhancing the performance of electronic devices.
