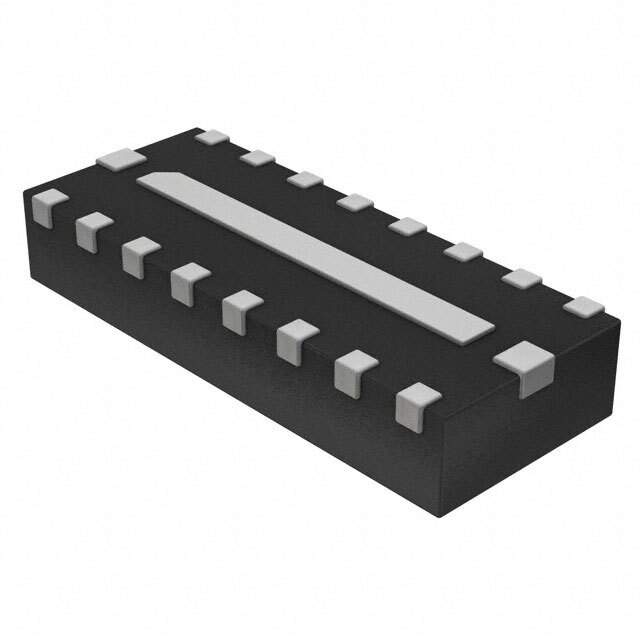

ON Semiconductor NUF8410MNT4G: EMI Filter with ESD Protection

The NUF8410MNT4G is a state-of-the-art EMI filter with integrated ESD protection, designed and manufactured by ON Semiconductor. This compact, high-performance component is specifically engineered to provide superior electromagnetic interference (EMI) filtering for data lines and other sensitive circuits. With its built-in electrostatic discharge (ESD) protection, the NUF8410MNT4G is an ideal choice for safeguarding high-speed data interfaces in a variety of electronic devices.

This versatile EMI filter features an array of 4 channels, each providing excellent noise suppression capabilities. It is particularly effective in applications where space is at a premium, thanks to its miniature 1.0 x 1.25 mm µDFN package. Despite its small size, the NUF8410MNT4G does not compromise on performance, offering a significant reduction in EMI to maintain signal integrity and ensure reliable operation of electronic systems.

The integrated ESD protection is compliant with the IEC61000-4-2 standard, safeguarding the connected circuits against electrostatic discharges up to ±15kV (air discharge) and ±8kV (contact discharge). This feature is crucial for preventing damage to sensitive components and prolonging the life of the end product.

ON Semiconductor's NUF8410MNT4G is suitable for a wide range of applications, including mobile phones, personal digital assistants (PDAs), notebooks, and other portable devices where data line EMI filtering and ESD protection are necessary. Its low pass filter design not only filters out unwanted high-frequency noise but also maintains signal integrity for high-speed data rates, making it an excellent choice for interfaces such as USB 2.0, HDMI, and MHL, among others.

In summary, the NUF8410MNT4G from ON Semiconductor is a highly effective EMI filter with ESD protection that combines compact size, robust performance, and reliability. It provides designers with an efficient solution for protecting sensitive circuits in a broad range of electronic devices, ensuring both compliance with EMI regulations and resilience against electrostatic events.
