The NUP8010MNT1G is a cutting-edge ESD protection device from ON Semiconductor, renowned for their commitment to high performance and reliability in the semiconductor industry. This product is designed to safeguard sensitive electronics from electrostatic discharge (ESD) events, which can occur during manufacturing, handling, or in the end-user environment, potentially damaging the electronic components or the device as a whole.

Key Features

• ESD Protection: The NUP8010MNT1G offers robust ESD protection that meets the IEC61000-4-2 standard, ensuring that devices are shielded from ESD events up to ±20 kV (air discharge) and ±15 kV (contact discharge).
• Low Clamping Voltage: This product features a low clamping voltage, which is crucial for protecting sensitive circuits by limiting the voltage spike during an ESD event.
• Low Capacitance: The device's low capacitance design minimizes signal distortion, making it ideal for high-speed data lines without compromising signal integrity.
• Multiple Line Protection: It can protect up to four data or I/O lines, offering a compact and efficient solution for devices with limited space.

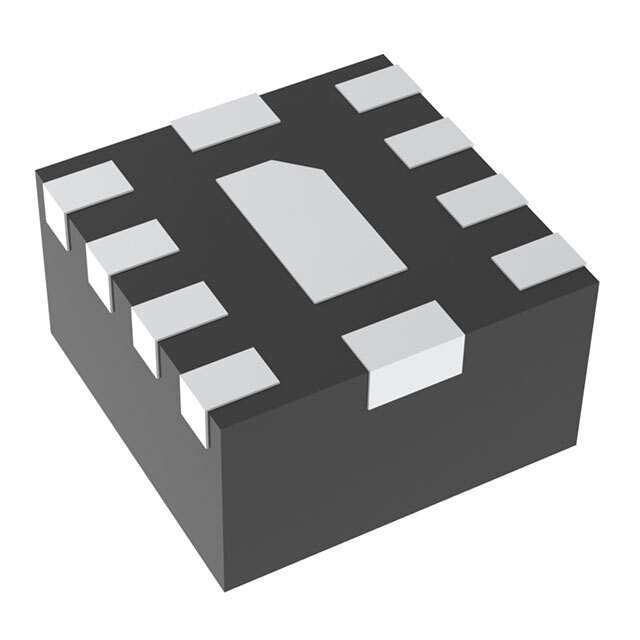

• Small Package: The NUP8010MNT1G comes in a small, leadless 10-pin UDFN package, which is highly space-efficient and suitable for portable electronic applications.
• RoHS Compliant: Complying with the Restriction of Hazardous Substances (RoHS) directive, this product is environmentally friendly and suitable for use in a wide variety of markets, including consumer electronics, computing, and telecommunications.

Applications

The NUP8010MNT1G is versatile and can be used in a broad range of applications. It is particularly well-suited for protecting high-speed data lines in:

• USB interfaces
• HDMI ports
• DisplayPort interfaces
• Ethernet connections
• Mobile phones
• Tablets
• Notebooks and other portable devices

In summary, the NUP8010MNT1G from ON Semiconductor is an excellent choice for designers looking to enhance the ESD resilience of their electronic products. Its combination of low capacitance, low clamping voltage, and multi-line protection in a compact package makes it an essential component for modern electronic designs where space and performance are at a premium.
