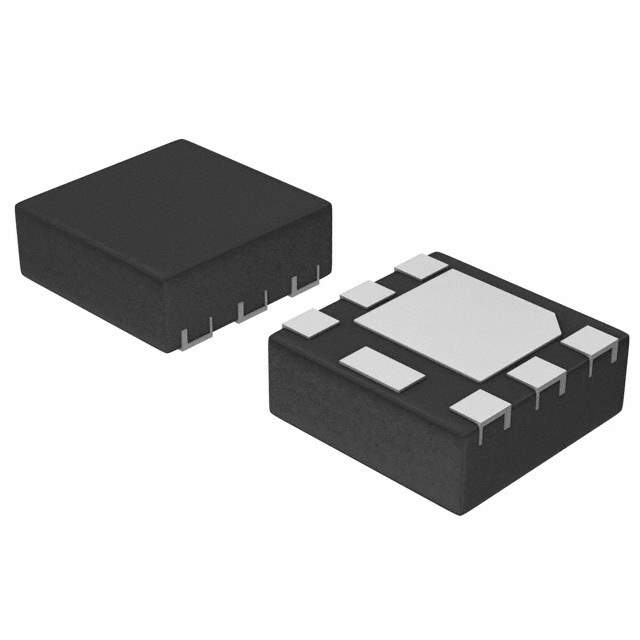

ON Semiconductor NUS1204MNT1G Product Overview

The ON Semiconductor NUS1204MNT1G is a cutting-edge ESD protection device designed to safeguard high-speed data lines and communication ports from electrostatic discharge (ESD), electrical fast transients (EFT), and lightning-induced surge events. This compact and efficient component is an essential addition to any sensitive electronic application where signal integrity and component longevity are paramount.

Key Features

• ESD Protection: The NUS1204MNT1G provides robust ESD protection up to ±15kV (Air Discharge) and ±8kV (Contact Discharge) as per the IEC 61000-4-2 standard, ensuring that devices remain safe from sudden electrostatic events.
• Surge Protection: With its ability to handle surge currents, it is compliant with the IEC 61000-4-5 standard, offering peace of mind against transient voltage spikes.
• Low Capacitance: The device features ultra-low capacitance (just 0.65 pF typical), making it ideal for protecting high-speed data lines without compromising signal integrity.
• Low Clamping Voltage: It offers a low dynamic resistance and clamping voltage, which ensures minimal impact on the protected circuit during ESD events.
• Small Package: Enclosed in a tiny SOT−23 package, the NUS1204MNT1G is perfect for space-constrained applications where board real estate is at a premium.

Applications

The NUS1204MNT1G is versatile and can be used in a wide range of applications. It is particularly well-suited for:

• USB 2.0 and 3.0 Power and Data Line Protection
• HDMI 1.3 and 1.4, DisplayPort, and Thunderbolt Interface Protection
• Gigabit Ethernet and other High-Speed Data Interfaces
• Mobile Phones, Digital Cameras, and Portable Electronics
• Notebooks, Desktops, and Servers

Quality and Reliability

ON Semiconductor is renowned for its commitment to quality, and the NUS1204MNT1G is no exception. It is produced with the highest manufacturing standards, ensuring both reliability and performance for critical applications. This component is RoHS compliant, reflecting ON Semiconductor's dedication to environmental responsibility.

With its combination of features, the NUS1204MNT1G from ON Semiconductor is an excellent choice for designers looking to enhance the durability and reliability of their electronic systems against the threats posed by ESD and other electrical disturbances.
