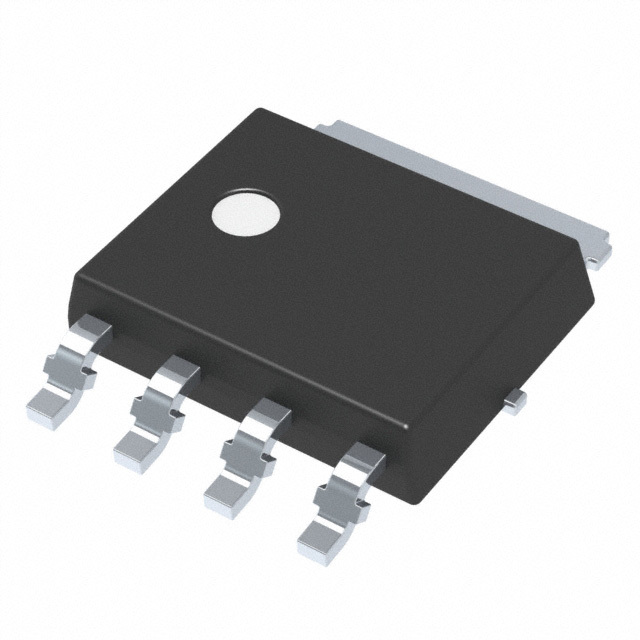

ON Semiconductor NVMYS1D3N04CTWG Overview

The ON Semiconductor NVMYS1D3N04CTWG is a high-performance, N-channel Power MOSFET designed to deliver efficiency and reliability for a wide range of applications. This device is part of ON Semiconductor's NVFET series, which are known for their low on-resistance and fast switching performance. The NVMYS1D3N04CTWG is an ideal choice for power management tasks where space is at a premium and energy efficiency is a priority.

Key Features

• Low On-Resistance: The MOSFET features a very low on-resistance (R<sub>DS(on)), which minimizes conduction losses and improves overall efficiency.
• High Current Capacity: With the ability to handle a continuous drain current (I<sub>D), this component is suitable for high-power applications.
• Fast Switching Speed: The fast switching characteristics of this MOSFET make it an excellent choice for high-frequency power switching applications.
• Robust Thermal Performance: The device's power package is designed to offer excellent thermal performance, ensuring reliability even under high power operation.
• Low Gate Charge: A low total gate charge (Q<sub>G) reduces switching losses, which is critical for power efficiency in applications such as DC-DC converters.

Applications

• DC-DC Converters
• Power Supply Modules
• Motor Drives
• Battery Management Systems
• Automotive Applications
• Switch Mode Power Supplies (SMPS)

Product Specifications

The NVMYS1D3N04CTWG MOSFET operates with a 40V drain-source voltage (V<sub>DS). It provides a maximum continuous drain current of 300A at 25°C, which ensures that it can handle high current loads with ease. The device is encapsulated in a TO-247 package, which is known for its high power dissipation capabilities. The combination of these features makes the NVMYS1D3N04CTWG a robust and efficient solution for power management applications.

Quality and Reliability

ON Semiconductor is committed to providing high-quality products. The NVMYS1D3N04CTWG has been rigorously tested to meet stringent industry standards, ensuring long-term reliability and performance in the field. The device is RoHS compliant, reflecting ON Semiconductor's dedication to environmental sustainability and safety.

Whether you're designing power systems for consumer electronics, industrial automation, or automotive technology, the NVMYS1D3N04CTWG offers the performance and reliability needed to power your innovations.
