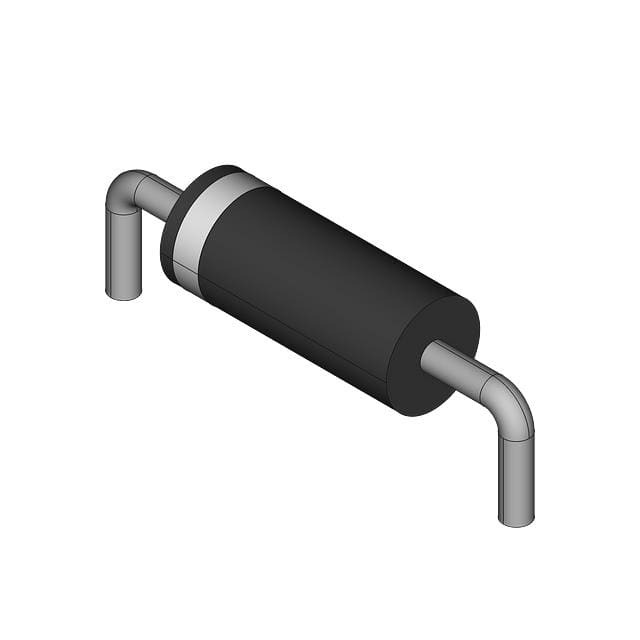

ON Semiconductor P6KE27ARLG TVS Diode

The P6KE27ARLG from ON Semiconductor is a high-quality Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronic equipment from voltage transients induced by system inductance, lightning, and other transient voltage events. This robust component is a crucial element in the defense against voltage spikes that can cause irreversible damage to integrated circuits and other critical components.

Key Features

• Peak Pulse Power Dissipation: The P6KE27ARLG is capable of handling 600W peak pulse power dissipation for a 10/1000μs waveform, ensuring effective protection against high energy transients.
• Standoff Voltage: It has a standoff voltage of 23.1V, which is the maximum reverse voltage that can be applied without causing a significant increase in leakage current.
• Breakdown Voltage: The breakdown voltage range is between 25.7V and 28.4V, which is the point where the TVS diode begins to conduct current to clamp the transient voltage.
• Clamping Voltage: With a clamping voltage of 37.5V, the P6KE27ARLG ensures that any transient voltage exceeding this limit is effectively clamped down to a safer level.
• Reverse Leakage Current: The device features a low leakage current of less than 1μA, minimizing power loss when the diode is in its standby state.
• Response Time: The TVS diode boasts a response time of less than 1 picosecond from 0V to BV min, offering immediate protection against voltage spikes.

Applications

The P6KE27ARLG is ideal for a wide range of applications where transient voltage protection is necessary. It can be used in:

• Industrial systems
• Consumer electronics
• Automotive systems
• Telecommunication devices
• Power supply circuits
• Other sensitive electronic devices

Reliability and Quality

ON Semiconductor is known for its commitment to quality and reliability, and the P6KE27ARLG is no exception. It is manufactured in ISO/TS16949 certified facilities, ensuring that each diode meets the highest quality standards. The P6KE27ARLG is also RoHS compliant, making it an environmentally friendly choice for companies looking to minimize their ecological footprint.

Whether you're designing a new system or looking to retrofit existing equipment, the ON Semiconductor P6KE27ARLG TVS diode offers superior transient voltage suppression performance to keep your applications safe and reliable.
