ON Semiconductor SBCP68T1G Bipolar Transistor

The SBCP68T1G from ON Semiconductor is a high-performance PNP bipolar transistor designed for use in a wide range of electronic applications. This versatile component is well-suited for amplification and switching applications, thanks to its excellent hFE linearity and high current gain bandwidth product (fT).

Key Features

• Device Type: PNP Bipolar Transistor

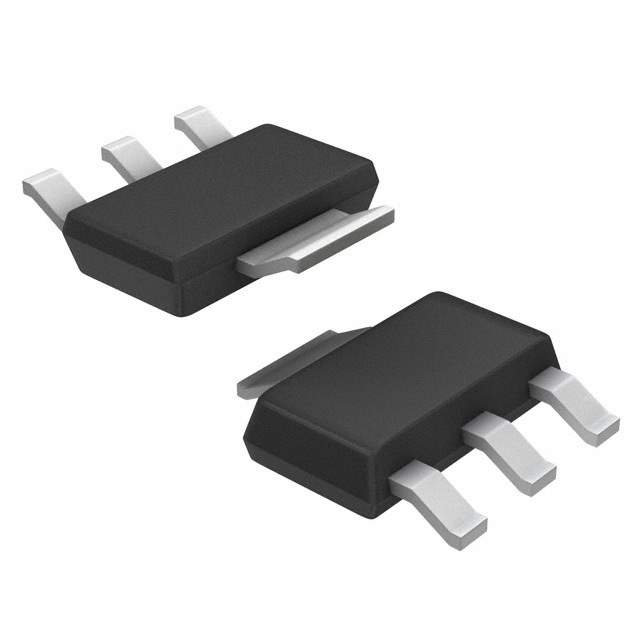

• Package: SOT-223, which provides a compact footprint while allowing for good heat dissipation.
• Collector-Emitter Voltage (VCEO): 80V, which allows it to handle moderate voltage applications with ease.
• Collector Current (IC): Up to 1A, providing sufficient current handling capability for a range of uses.
• Power Dissipation (Pd): 1.5W, ensuring the device can handle significant power levels without overheating.
• DC Current Gain (hFE): High, with a range from 100 to 630, offering excellent amplification characteristics.
• Transition Frequency (fT): 100MHz, enabling fast switching and operation in high-frequency circuits.
• RoHS Compliant: Yes, meeting environmental and regulatory standards.

Applications

The SBCP68T1G is ideal for a variety of applications, including but not limited to:

• Power management circuits
• Signal amplification
• Switching regulators
• Audio amplifiers
• Driver stages in hi-fi amplifiers and television circuits

Quality and Reliability

ON Semiconductor is known for its commitment to quality and reliability, and the SBCP68T1G is no exception. It is designed to meet stringent standards, ensuring long-term stability and performance in your electronic projects.

Why Choose the SBCP68T1G?

With its robust electrical characteristics and versatile package, the SBCP68T1G is an excellent choice for designers looking for a reliable PNP transistor. Whether you're working on power conversion or audio amplification, this component from ON Semiconductor will help you achieve efficient and effective results.
