ON Semiconductor SCH1435-TL-H Overview

The SCH1435-TL-H is a high-performance, P-Channel MOSFET from ON Semiconductor, designed to offer efficient power management within compact and energy-sensitive applications. This product is part of ON Semiconductor's portfolio of semiconductor components that are renowned for their reliability and cutting-edge technology.

Key Features

• Device Type: P-Channel MOSFET

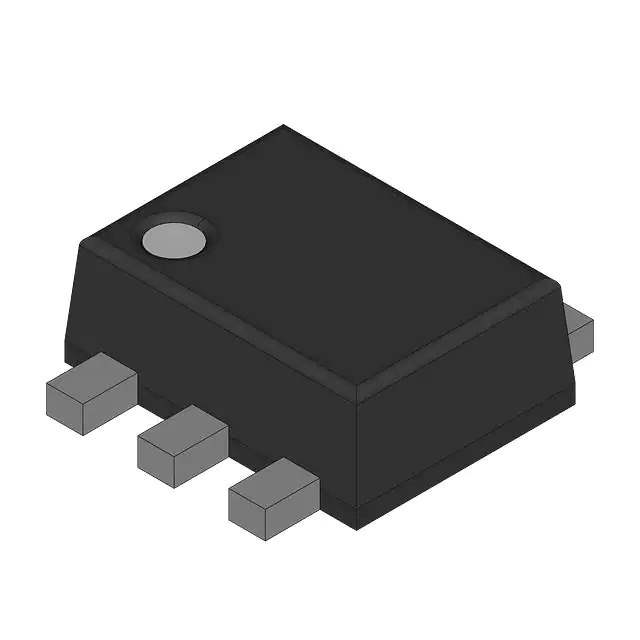

• Package: The SCH1435-TL-H comes in a small leadless package, specifically a 6-pin Thin SuperSOT-6L, which is ideal for space-constrained applications.
• Drain-Source Voltage (V<sub>DS): It can handle a maximum drain-source voltage of -30V, making it suitable for a wide range of applications.
• Continuous Drain Current (I<sub>D): The MOSFET supports a continuous drain current of -6A, providing robust current handling capability.
• Gate-Source Voltage (V<sub>GS): ±20V maximum, allowing for flexible gate drive designs.
• R<sub>DS(on): It features a low on-state resistance, which minimizes power losses and improves efficiency.
• High-Speed Switching: The device is optimized for fast switching speeds, which is vital for reducing switching losses and improving performance in high-frequency applications.

Applications

The SCH1435-TL-H is designed for use in a variety of applications, including:

• Power Management Circuits
• DC/DC Converters
• Load Switches
• Battery Management Systems
• Portable Devices

Quality and Reliability

ON Semiconductor is committed to providing products that meet the highest standards of quality and reliability. The SCH1435-TL-H is built to ensure long-term stability and performance, even in demanding conditions. Its robust construction and adherence to stringent industry standards make it a reliable choice for designers looking to incorporate a dependable P-Channel MOSFET into their electronic designs.

Environmental Compliance

The SCH1435-TL-H is compliant with RoHS (Restriction of Hazardous Substances) directives, which means it is manufactured with a focus on environmental safety and sustainability. This compliance ensures that the product is free from certain hazardous materials, making it suitable for use in a wide range of consumer and industrial products.
