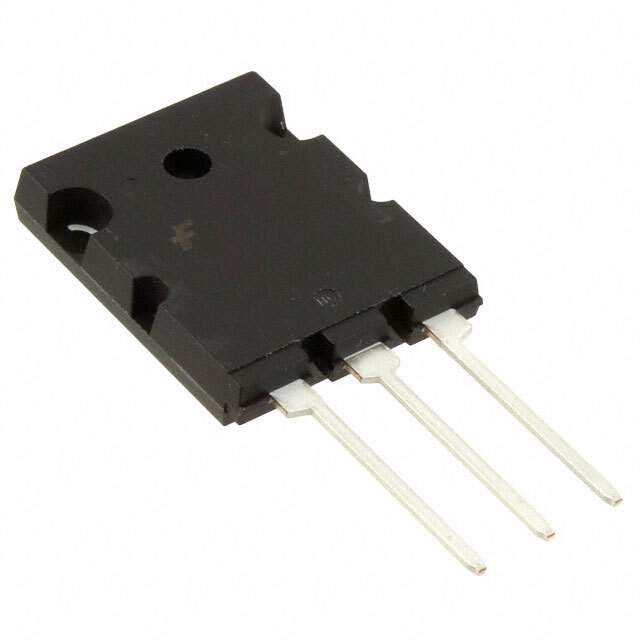

The ON Semiconductor SGL60N90DG3YDTU is a state-of-the-art insulated gate bipolar transistor (IGBT) that offers a perfect blend of high efficiency and fast switching. This IGBT is designed to meet the demanding needs of a wide range of power electronics applications, including inverters, converters, and motor drives. It is a preferred choice for engineers looking to enhance system reliability and performance in high-power and high-frequency operations.

Key Features

• High Current Capability: The SGL60N90DG3YDTU supports a continuous collector current (Ic) of 60A, making it suitable for high power applications.
• High Voltage Rating: With a collector-emitter voltage (Vce) rating of 900V, this IGBT can handle significant voltage stress, ensuring robust performance in a variety of electrical circuits.
• Low On-Resistance: The low on-state voltage drop and conduction losses are due to its low on-resistance, which ensures higher efficiency and lower heat generation.
• Fast Switching Speed: The device boasts a fast switching speed, which is crucial for reducing switching losses and improving overall system efficiency.
• Co-Packaged Free Wheeling Diode: It comes with an integrated fast recovery diode which provides protection against reverse voltage transients and reduces component count in circuit design.

Applications

The SGL60N90DG3YDTU is versatile and can be used in a multitude of applications. It is particularly well-suited for:

• Uninterruptible Power Supplies (UPS)
• Power Factor Correction (PFC) circuits
• DC-AC Power Inverters
• Induction Heating
• Motor Control and Drives
• Solar Power Inverters
• Electric Vehicle (EV) Charging Stations

Environmental and Quality Standards

ON Semiconductor is committed to environmental stewardship and the SGL60N90DG3YDTU is manufactured in compliance with the latest environmental standards, including RoHS and REACH. The product is also backed by ON Semiconductor's quality assurance, reflecting the company's dedication to delivering high-quality and reliable components.
