ON Semiconductor SMBJ13A100 Overview

The SMBJ13A100 from ON Semiconductor is a robust and versatile transient voltage suppression (TVS) diode designed to protect sensitive electronic components from voltage spikes and surges. This high-quality TVS diode is an ideal solution for safeguarding various applications against transient overvoltage events, including industrial systems, consumer electronics, and communication infrastructure.

Key Features

• Stand-off Voltage: The SMBJ13A100 has a stand-off voltage rating of 13V, providing a secure voltage threshold before the TVS diode begins to conduct.
• Peak Pulse Power: It offers excellent surge protection with a peak pulse power of 600 Watts for a 10/1000 μs waveform, ensuring reliable performance during transient conditions.
• Clamping Voltage: The device features a low clamping voltage, which is critical for protecting sensitive circuitry from damaging high-voltage transients.
• Fast Response Time: With its fast response time, the SMBJ13A100 reacts quickly to surge events, minimizing the risk of damage to the protected components.
• Uni-directional Protection: This TVS diode provides uni-directional transient voltage suppression, making it suitable for scenarios where specific polarity protection is required.

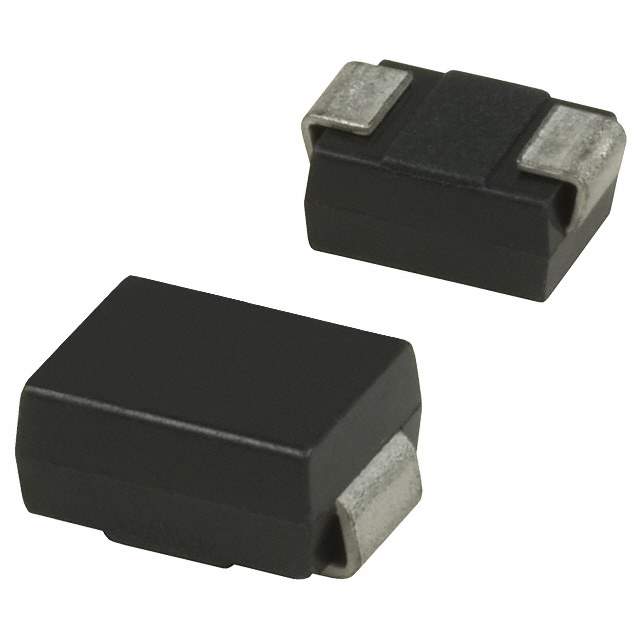

• Package: The SMBJ13A100 comes in a compact SMB (DO-214AA) package, which is ideal for space-constrained applications while offering robust thermal performance.
• Compliance: It is RoHS compliant and meets the IEC 61000-4-2 standard for electrostatic discharge (ESD) immunity, ensuring compatibility with global environmental and safety requirements.

Applications

The ON Semiconductor SMBJ13A100 is engineered to provide reliable transient voltage protection in a wide range of applications. It is particularly well-suited for:

• Power supply circuits
• AC/DC applications
• Telecommunication devices
• Portable electronics
• Microprocessor/microcontroller-based equipment
• Industrial control systems

In conclusion, the SMBJ13A100 from ON Semiconductor is a high-performance TVS diode that offers robust protection for electronic circuits against voltage transients. Its combination of a high surge capability, fast response time, and compact form factor makes it an excellent choice for designers looking to enhance the reliability and longevity of their products.
