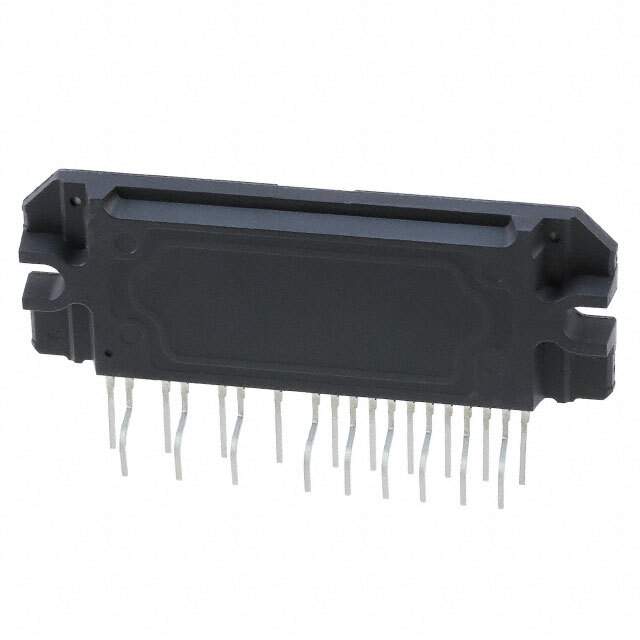

ON Semiconductor STK544UC63K-E Intelligent Power Module

The ON Semiconductor STK544UC63K-E is a highly integrated and efficient Intelligent Power Module (IPM) designed for advanced motor drive applications such as those found in washing machines, refrigerators, air conditioners, and industrial machinery. This state-of-the-art module encapsulates a range of features that ensure high performance, reliability, and ease of use in a compact form factor.

Key Features:

• High Voltage and Current Rating: The STK544UC63K-E operates at a high voltage of up to 600V with a current rating of 15A, making it suitable for a wide range of high-power applications.
• Integrated Gate Drivers: Equipped with built-in gate drivers, the module simplifies the circuit design by reducing the number of external components required for operation.
• Overcurrent Protection: The IPM includes an overcurrent protection feature that ensures the safety and longevity of the module by preventing damage due to excessive current flow.
• Short-Circuit Rated IGBTs: The module utilizes Insulated Gate Bipolar Transistors (IGBTs) that are rated for short circuits, providing additional protection against fault conditions.
• Under-Voltage Lockout (UVLO): The UVLO function ensures that the module operates within safe voltage levels, protecting the device and the system it controls.
• Over-Temperature Protection: An integrated temperature sensing circuit provides over-temperature protection, preventing the module from overheating during operation.
• Optimized for Low Electromagnetic Interference (EMI): The STK544UC63K-E is designed with EMI reduction in mind, making it suitable for use in environments where interference must be minimized.
• Compact Design: The module's compact footprint allows for a reduction in board space and a simplified layout, which can be crucial in space-constrained applications.

Applications:

The STK544UC63K-E is ideal for a variety of applications that require precise motor control and high-power efficiency. Its robust design and integrated features make it a go-to choice for engineers looking to enhance system performance while maintaining reliability and reducing overall system complexity.

Summary:

ON Semiconductor's STK544UC63K-E Intelligent Power Module represents a leap forward in motor control technology. It provides designers with a comprehensive solution that combines high voltage and current capabilities with advanced protection features and a compact design. This IPM is an excellent choice for those seeking to optimize their motor drive systems with a reliable, efficient, and easy-to-use component.
