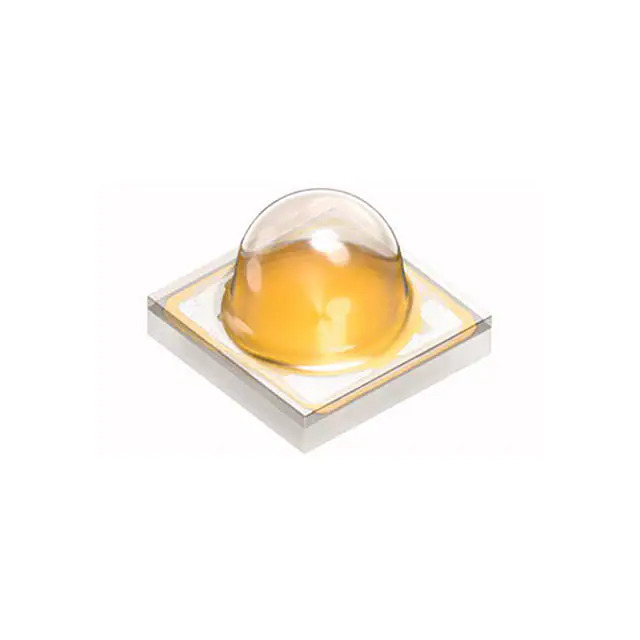

GW CS8PM1.PM-LSLU-XX53-1-350-R18 OSRAM Opto Semiconductors Inc.
Same model may have multiple batches, images only for reference.

GW CS8PM1.PM-LSLU-XX53-1-350-R18

Part No GW CS8PM1.PM-LSLU-XX53-1-350-R18
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Lighting - White
Description LED OSLON COOL WHT 5000K SMD
Datasheet
GW CS8PM1.PM-LSLU-XX53-1-350-R18 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - White LED Lighting
Mfr ams-OSRAM USA INC.
Series OSLON® SSL 80
Package Tape & Reel
Product Status Active
Color White, Cool
CCT (K) 5000K
Flux @ 85°C, Current - Test 160lm (140lm ~ 180lm)
Flux @ 25°C, Current - Test -
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 2.85V
Lumens/Watt @ Current - Test 160 lm/W
CRI (Color Rendering Index) 70
Current - Max 1.3A
Viewing Angle 80°
Mounting Type Surface Mount
Package / Case 1212 (3030 Metric)
Supplier Device Package SMD
Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.084" (2.13mm)
Thermal Resistance of Package 5.25°C/W
Base Product Number GWCS8PM1.P
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1371866-GW CS8PM1.PM-LSLU-XX53-1-350-R18
Ultra Librarian 3D Model Ultra Librarian GW CS8PM1.PM-LSLU-XX53-1-350-R18 CAD Model

Description

The OSLON® SSL 80 GWCS8PM1.P is a surface mount white LED lighting component manufactured by ams-OSRAM USA INC.

  • Product Name: OSLON® SSL 80 GWCS8PM1.P
  • Manufacturer: ams-OSRAM USA INC
  • Series: OSLON® SSL 80
  • Package: 1212 (3030 Metric)
  • Size: 0.118" L x 0.118" W (3.00mm x 3.00mm)
  • Height: 0.084" (2.13mm)
  • Maximum Current: 1.3A
  • Forward Voltage: 2.85V
  • Viewing Angle: 80°
  • Color Temperature: 5000K
  • Flux @ 350mA: 160lm (140lm ~ 180lm)
  • Luminous Efficacy @ 350mA: 160 lm/W
  • Color Rendering Index (CRI): 70
  • Thermal Resistance: 5.25°C/W
  • Application: Surface Mount, Optoelectronics, White LED Lighting
