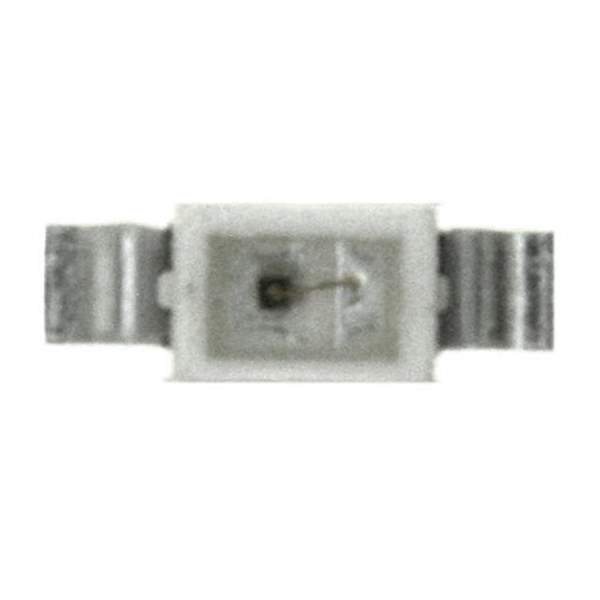

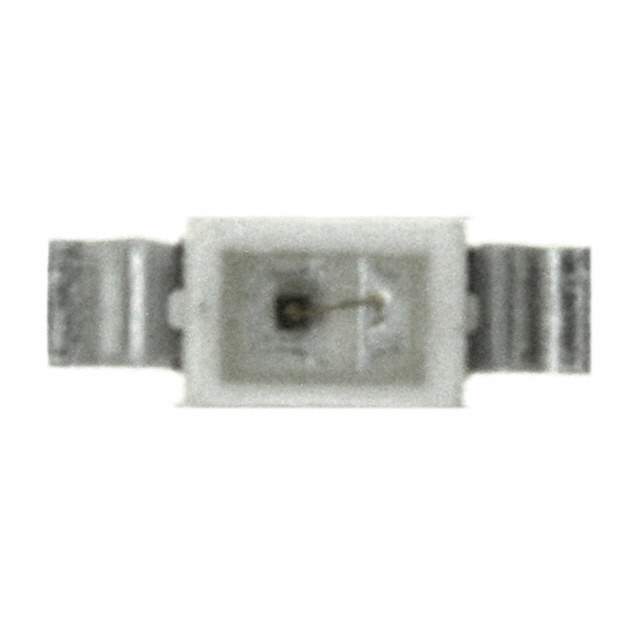

LB M47C-P1R2-35-1-20-R18-Z Real Image
Same model may have multiple batches, images only for reference.

LB M47C-P1R2-35-1-20-R18-Z

Part No LB M47C-P1R2-35-1-20-R18-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Indication - Discrete
Description LED BLUE CLEAR SMD BOTTOM ENTRY / Blue 470nm LED Indication - Discrete 3.6V 2-SMD, Z-Bend
Datasheet
LB M47C-P1R2-35-1-20-R18-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr ams-OSRAM USA Inc.
Series Mini TOPLED® Santana
Package Tape & Reel
Product Status Obsolete
Color Blue
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 112.5mcd
Lens Style Rectangle with Flat Top
Lens Size 1.50mm x 1.00mm
Voltage - Forward (Vf) (Typ) 3.6V
Current - Test 20mA
Viewing Angle 120°
Mounting Type Surface Mount, Bottom Entry
Wavelength - Dominant 470nm
Wavelength - Peak 465nm
Package / Case 2-SMD, Z-Bend
Supplier Device Package SMD
Dimension 4.00mm L x 1.40mm W
Height (Max) 1.50mm
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names LBM47CP1R235120R18Z,LB M47C-P1R2-35-1-20-R18-Z-ND,475-1384-2,475-1384-1,475-1384-6,LB M47C-P1R2-35-1-Z,Q65110A1976
Standard Package 3,000
Win Source Part Number 1068815-LB M47C-P1R2-35-1-20-R18-Z
Ultra Librarian 3D Model Ultra Librarian LB M47C-P1R2-35-1-20-R18-Z CAD Model

Description

The OSRAM Opto Semiconductors Inc. 1068815-LB M47C-P1R2-35-1-20-R18-Z is a blue LED that is part of the Mini TOPLED Santana series.

  • Manufacturer: ams-OSRAM USA Inc.
  • LED Color: Blue
  • Series: Mini TOPLED Santana
  • Viewing Angle: 120 degrees
  • Voltage-Forward: 3.6V
  • Millicandela Rating: 112.5mcd
  • Wavelength-Dominant: 470nm
  • Height: 1.50mm
  • Package/Case: 2-SMD, Z-Bend
  • Win Source Part Number: 1068815-LB M47C-P1R2-35-1-20-R18-Z
  • Product Status: Obsolete
