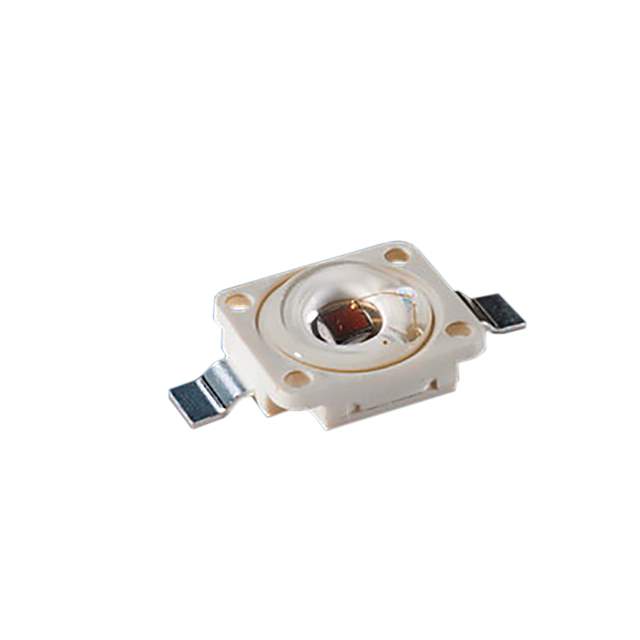

LH W5AM-1T3T-1 Real Image
Same model may have multiple batches, images only for reference.

LH W5AM-1T3T-1

Part No LH W5AM-1T3T-1
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog OEM Parts (J - L)
Description Opto LH W5AM-1T3T-1; Golden Dragon Series Red High-Power LED; 640 nm; Round Lens
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Termination SMD/SMT
Depth 6.2 mm
Dominant Wavelength 645 nm
Forward Current 1 A
Forward Voltage 2.6 V
Length 7.2 mm
Lens Color Clear
Lens Style Diffused, Round
Maximum Operating Temperature 125 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Elements 1
Number of LEDs 1
Number of Pins 2
Packaging Tape and Reel
RoHS Compliant
Test Current 400 mA
Viewing Angle 170 °
Win Source Part Number 1069701-LH W5AM-1T3T-1
Categories OEM Parts(J-L)
Manufacturer OSRAM Opto Semiconductors Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian LH W5AM-1T3T-1 CAD Model

Description

The OSRAM Opto Semiconductors Inc. 1069701-LH W5AM-1T3T-1 is a surface mount LED with a diffused, round lens style and clear lens color.

  • Forward Voltage: 2.6 V
  • Forward Current: 1 A
  • Category: Alternative part (cross-reference)
  • Supply and Demand: Shortage
  • Maximum Operating Temperature: 125 °C
  • Minimum Operating Temperature: -40 °C
  • RoHS: Compliant
