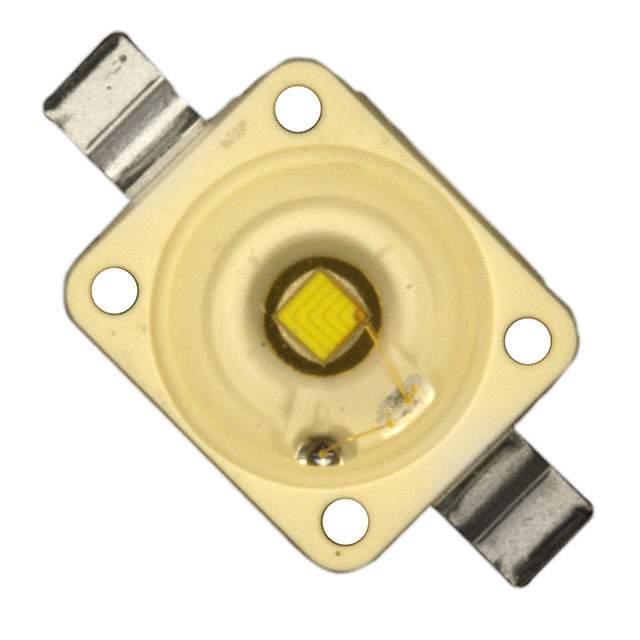

LRW5AM-HZJZ-1 Real Image
Same model may have multiple batches, images only for reference.

LRW5AM-HZJZ-1

Part No LRW5AM-HZJZ-1
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optics - LEDs - Light Pipes
Description LED, DRAGON PLUS, RED; Series: Golden DRAGON Plus; LED Colour: Red; Luminous Intensity @ Test: 19400mcd; Wavelength:...
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Termination SMD/SMT
Color Red
Depth 6.2 mm
Dominant Wavelength 625 nm
Forward Current 1 A
Forward Voltage 2.6 V
Length 7.2 mm
Lens Style Circular, Colorless, Diffused, Round
Luminous Flux 71 lm
Luminous Intensity 17.6 cd
Maximum Operating Temperature 125 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Elements 1
Number of LEDs 1
Number of Pins 2
Packaging Cut Tape
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Test Current 400 mA
Viewing Angle 170 °
Wavelength 632 nm
Win Source Part Number 1006210-LRW5AM-HZJZ-1
Categories Optics - LEDs - Light Pipes
Manufacturer OSRAM Opto Semiconductors Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian LRW5AM-HZJZ-1 CAD Model

Description

The OSRAM Opto Semiconductors Inc. 942701 is a cut tape LED light pipe with a red color and a wavelength of 632 nm.

  • Color: Red
  • Wavelength: 632 nm
  • Termination: SMD/SMT
  • Mounting: Surface Mount
  • Forward Voltage: 2.6 V
  • Forward Current: 1 A
  • Luminous Intensity: 17.6 cd
  • Viewing Angle: 170°
  • Luminous Flux: 71 lm
  • Number of LEDs: 1
  • Lens Style: Circular, colorless, diffused, and round
  • Maximum Operating Temperature: 125 °C
  • Minimum Operating Temperature: -40 °C
  • Supply and Demand Status: Shortage
