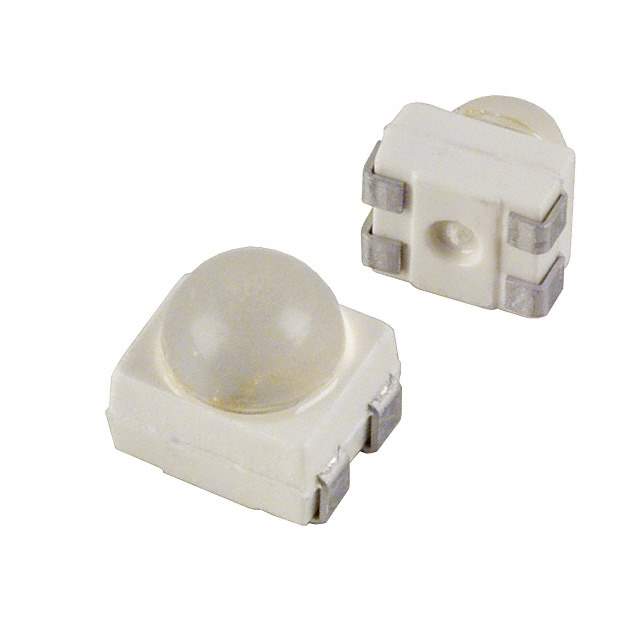

LS E65B-AABB-1-1-Z Real Image
Same model may have multiple batches, images only for reference.

LS E65B-AABB-1-1-Z

Part No LS E65B-AABB-1-1-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optics - LEDs - Light Pipes
Description LED Uni-Color Red 645nm 4-Pin PLCC T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package PLCC
Color Red
Dominant Wavelength 633 nm
Forward Current 70 mA
Forward Voltage 2.2 V
Height 3.5 mm
Illumination Color Red
Length 3.2 mm
Lens Color Colorless
Lens Style Circular, Colorless, Diffused
Lens Transparency Clear
Luminous Flux 2.4 lm
Luminous Intensity 1.96 cd
Max Operating Temperature 100 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of LEDs 1
Number of Pins 4
Packaging Tape & Reel
RoHS Compliant
Test Current 50 mA
Viewing Angle 60 °
Width 2.8 mm
Win Source Part Number 1117071-LS E65B-AABB-1-1-Z
Categories Optics - LEDs - Light Pipes
Manufacturer OSRAM Opto Semiconductors Inc.
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LS E65B-AABB-1-1-Z CAD Model

Description

The OSRAM Opto Semiconductors Inc. LS E65B-AABB-1-1-Z is a high-quality LED lighting component designed to produce bright and vibrant red light and is manufactured by OSRAM Opto Semiconductors Inc.

  • Format: Tape and Reel
  • Mounting Style: Surface Mount
  • Package/Case: PLCC
  • Length: 3.2 mm
  • Height: 3.5 mm
  • Width: 2.8 mm
  • Viewing Angle: 60 °
  • Luminous Flux: 2.4 lm
  • Forward Voltage: 2.2V
  • Forward Current: 70 mA
