Same model may have multiple batches, images only for reference.

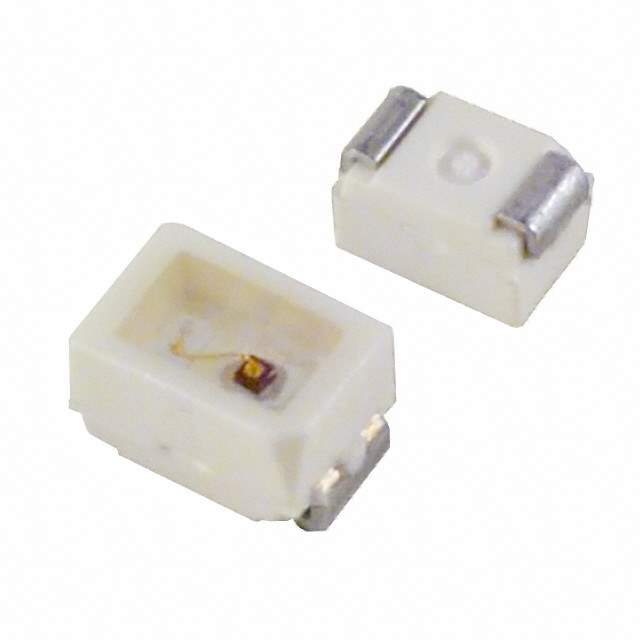

LS M670-J2L1-1 Real Image
Same model may have multiple batches, images only for reference.

LS M670-J2L1-1

Part No LS M670-J2L1-1
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog OEM Parts (J - L)
Description LED Uni-Color Red 635nm 2-Pin SMT T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Termination SMD/SMT
Color Red
Contact Plating Tin
Depth 1.5 mm
Dominant Wavelength 628 nm
Forward Current 30 mA
Forward Voltage 2.5 V
Length 2.1 mm
Lens Style Colorless, Diffused, Rectangular
Luminous Flux 30 mlm
Luminous Intensity 14 mcd
Maximum Operating Temperature 100 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Elements 1
Number of LEDs 1
Number of Pins 2
Packaging Tape and Reel
Radiation Hardening No
Reverse Voltage 12 V
RoHS Compliant
Test Current 10 mA
Viewing Angle 120 °
Win Source Part Number 1071164-LS M670-J2L1-1
Categories OEM Parts(J-L)
Manufacturer OSRAM Opto Semiconductors Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian LS M670-J2L1-1 CAD Model

Description

The OSRAM Opto Semiconductors Inc. 1071164-LS M670-J2L1-1 is a red SMD LED with a viewing angle of 120 degrees and a luminous intensity of 14 mcd.

  • Color: Red
  • Mounting Type: SMD
  • Viewing Angle: 120 degrees
  • Luminous Intensity: 14 mcd
  • Forward Voltage: 2.5 V
  • Forward Current: 30 mA
  • Lens Style: Rectangular
  • Lens Color: Colorless and diffused
  • Mounting: Surface mount
  • Packaging: Tape and reel
  • Max Operating Temperature: 100 degrees Celsius
  • Min Operating Temperature: -40 degrees Celsius
  • RoHS Compliance: Compliant
  • Radiation Hardening: No
