Same model may have multiple batches, images only for reference.

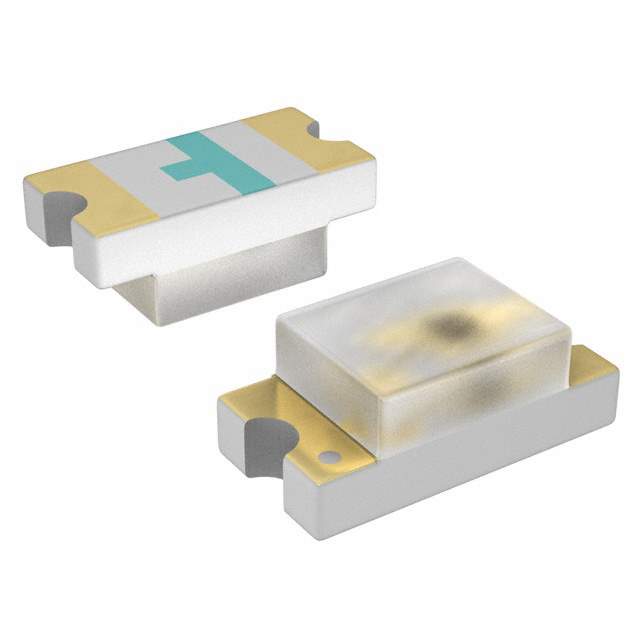

LS R976 Real Image
Same model may have multiple batches, images only for reference.

LS R976

Part No LS R976
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optics - LEDs - Light Pipes
Description LED Low-Power Uni-Color Super Red 645nm 0.11lm 2V 2-Pin Chip 0805(2012Metric) T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 0805
Color Red
Depth 1.35 mm
Dominant Wavelength 633 nm
Forward Current 25 mA
Forward Voltage 2 V
Length 2.1 mm
Lens Color Clear
Lens Style Colorless, Diffused, Rectangular
Luminous Flux 330 mlm
Luminous Intensity 50 mcd
Maximum Operating Temperature 85 °C
Min Operating Temperature -30 °C
Mount Surface Mount
Number of Elements 1
Number of LEDs 1
Number of Pins 2
Power Dissipation 65 mW
Radiation Hardening No
REACH SVHC No SVHC
Reverse Voltage 12 V
RoHS Compliant
Schedule B 8541402000
Termination SMD/SMT
Test Current 20 mA
Viewing Angle 160 °
Wavelength 633 nm
Width 1.25 mm
Win Source Part Number 1071195-LS R976
Categories Optics - LEDs - Light Pipes
Manufacturer OSRAM Opto Semiconductors Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian LS R976 CAD Model

Description

The OSRAM Opto Semiconductors Inc. is a LED light pipe component used in various electronic devices.

  • Forward Voltage: 2V
  • Forward Current: 25mA
  • Viewing Angle: 160°
  • Luminous Flux: 330 mlm
  • Win Source Part Number: 1071195-LS R976
  • Package: 0805
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 85°C
