Same model may have multiple batches, images only for reference.

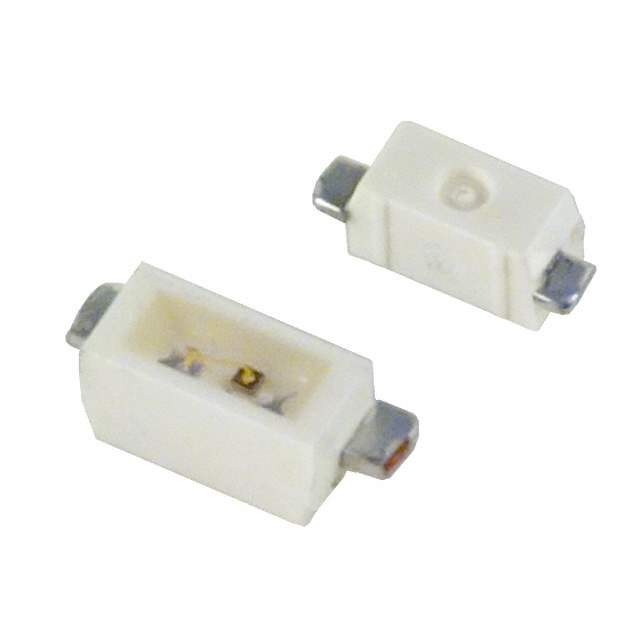

LS Y876-Q2S1-1-Z Real Image
Same model may have multiple batches, images only for reference.

LS Y876-Q2S1-1-Z

Part No LS Y876-Q2S1-1-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optics - LEDs - Light Pipes
Description LED Uni-Color Super Red 645nm Automotive 2-Pin SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package SMD/SMT
Color Red
Depth 1.3 mm
Dominant Wavelength 633 nm
Forward Current 30 mA
Forward Voltage 2.3 V
Height 1.2 mm
Illumination Color Red
Length 3 mm
Lens Color Colorless
Lens Style Colorless, Diffused, Rectangular
Lens Transparency Clear
Luminous Flux 480 mlm
Luminous Intensity 224 mcd
Max Operating Temperature 100 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Elements 1
Number of LEDs 1
Number of Pins 2
Packaging Tape and Reel
Power Dissipation 80 W
Radiation Hardening No
Reverse Voltage 12 V
RoHS Compliant
Schedule B 8541402000
Test Current 20 mA
Viewing Angle 120 °
Width 1.2 mm
Win Source Part Number 1140153-LS Y876-Q2S1-1-Z
Categories Optics - LEDs - Light Pipes
Manufacturer OSRAM Opto Semiconductors Inc.
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LS Y876-Q2S1-1-Z CAD Model

Description

The red LED component by OSRAM Opto Semiconductors Inc. is a surface-mount device (SMD) with a rectangular lens style that is colorless, diffused, and rectangular.

  • Luminous Intensity: 224 mcd
  • Forward Voltage: 2.3 V
  • Power Dissipation: 80 W
  • Forward Current: 30 mA
  • Viewing Angle: 120 degrees
  • Height: 1.2mm
  • RoHS Compliant: Yes
  • Popularity: Medium
  • Application: Optics - LEDs - Light Pipes
