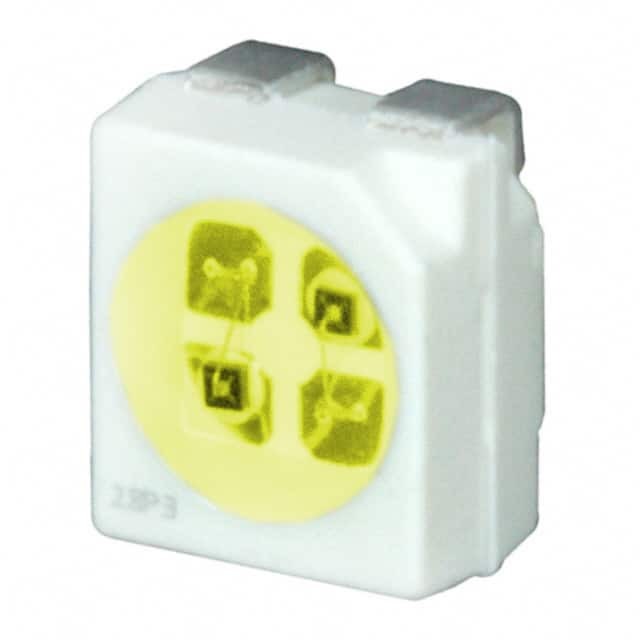

Same model may have multiple batches, images only for reference.
LSY T675-R1S2-1-0+S1U2-35-0-30-R18-Z OSRAM Opto Semiconductors Inc.
Same model may have multiple batches, images only for reference.

LSY T675-R1S2-1-0+S1U2-35-0-30-R18-Z

Part No LSY T675-R1S2-1-0+S1U2-35-0-30-R18-Z
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Indication - Discrete
Description LED TOPLED 633/587 RED/YLW 4PLCC / Red, Yellow 633nm, 587nm LED Indication - Discrete 2.0V Red, 2.0V Yellow 4-PLCC
Datasheet
LSY T675-R1S2-1-0+S1U2-35-0-30-R18-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr ams-OSRAM USA Inc.
Series Multi TOPLED®
Package Cut Tape (CT),
Product Status Obsolete
Color Red, Yellow
Millicandela Rating 196mcd Red, 445mcd Yellow
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Voltage - Forward (Vf) (Typ) 2.0V Red, 2.0V Yellow
Current - Test 30mA
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Dominant 633nm, 587nm
Wavelength - Peak 645nm, 594nm
Package / Case 4-PLCC
Supplier Device Package 4-PLCC
Dimension 3.20mm L x 2.80mm W
Height (Max) 2.10mm
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names Q65110A2445,475-2525-6,LSYT675R1S210S1U235030R18Z,LSY T675-R1S2-1-0+S1U2-35-0-30-R18-Z-ND,475-2525-2,LSY T675-R1S2+S1U2-1-Z,475-2525-1
Standard Package 2,000
Win Source Part Number 1071207-LSY T675-R1S2-1-0+S1U2-35-0-30-R18-Z
Ultra Librarian 3D Model Ultra Librarian LSY T675-R1S2-1-0+S1U2-35-0-30-R18-Z CAD Model

Description

The LSY T675-R1S2-1-0+S1U2-35-0-30-R18-Z is a red and yellow LED indication in a 4-PLCC package.

  • Viewing Angle: 120 degrees
  • Height: 2.10mm
  • Millicandela Rating: 196mcd for red and 445mcd for yellow @ a current of 30mA
  • Forward Voltage: 2.0V for both colors
  • Dominant Wavelength: 633nm for red and 587nm for yellow
  • Peak Wavelength: 645nm and 594nm, respectively
