Same model may have multiple batches, images only for reference.

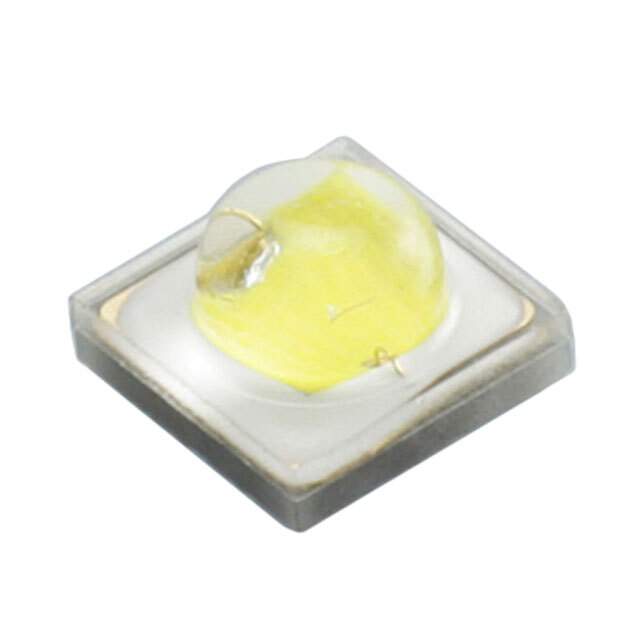

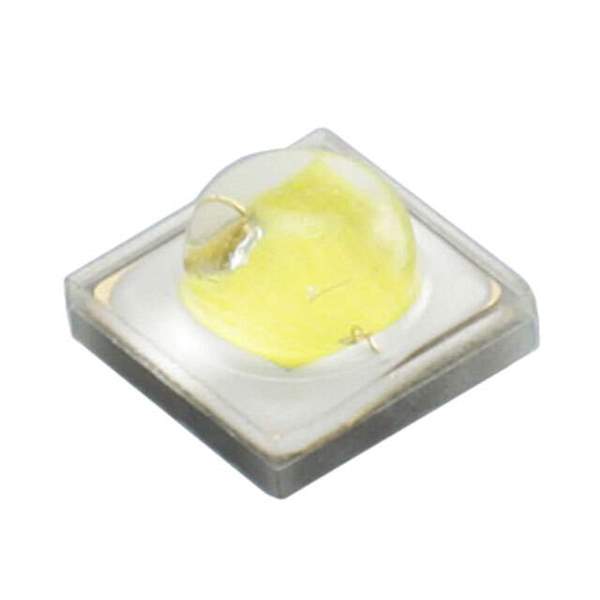

LUW CQAR-MUNQ-HPJR-1 Real Image
Same model may have multiple batches, images only for reference.

LUW CQAR-MUNQ-HPJR-1

Part No LUW CQAR-MUNQ-HPJR-1
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optics - LEDs - Light Pipes
Description LED Uni-Color White 6000K 70 2-Pin CSMD EP T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package CSMD
Color White
Color Rendering Index (CRI) 70
Depth 3.1 mm
Forward Current 1.5 A
Forward Voltage 3.5 V
Height 1.98 mm
Lead Free Lead Free
Length 3.1 mm
Lens Color Clear
Lens Style Circular, Round
Luminous Flux 330 lm
Luminous Intensity 105 cd
Max Current Rating 1.5 A
Max Operating Temperature 110 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Elements 1
Number of LEDs 1
Number of Pins 3
Packaging Cut Tape (CT)
Radiation Hardening No
Reverse Voltage 1.2 V
RoHS Compliant
Schedule B 8541402000
Test Current 700 mA
Viewing Angle 120 °
Width 3.1 mm
Win Source Part Number 1160470-LUW CQAR-MUNQ-HPJR-1
Categories Optics - LEDs - Light Pipes
Manufacturer OSRAM Opto Semiconductors Inc.
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LUW CQAR-MUNQ-HPJR-1 CAD Model

Description

The OSRAM Opto Semiconductors Inc. 1160470-LUW CQAR-MUNQ-HPJR-1 is a CSMD electronic component with a white color and a clear lens.

  • Color: White
  • Lens: Clear
  • Luminous Flux: 330 lm
  • Luminous Intensity: 105 cd
  • Forward Current: 1.5 A
  • Forward Voltage: 3.5 V
  • RoHS Compliant: Yes
  • Lead-Free: Yes
  • Max Operating Temperature: 110 °C
