LUW F65G-KXLY-5P7R OSRAM Opto Semiconductors Inc.
Same model may have multiple batches, images only for reference.

LUW F65G-KXLY-5P7R

Part No LUW F65G-KXLY-5P7R
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Lighting - White
Description LED OSLUX WHITE 6500K SMD / LED Lighting series 6500K (Typ) 3.6V 700mA 60°, 47° 2020 (5050 Metric)
Datasheet
LUW F65G-KXLY-5P7R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr ams-OSRAM USA Inc.
Series OSLUX
Package Cut Tape (CT),
Product Status Obsolete
CCT (K) 6500K (Typ)
Flux @ 85°C, Current - Test 89lm
Flux @ 25°C, Current - Test 111lm (71lm ~ 150lm)
Current - Test 700mA
Voltage - Forward (Vf) (Typ) 3.6V
Lumens/Watt @ Current - Test 44 lm/W
Viewing Angle 60°, 47°
Mounting SMD (SMT)
Package / Case 2020 (5050 Metric)
Supplier Device Package SMD

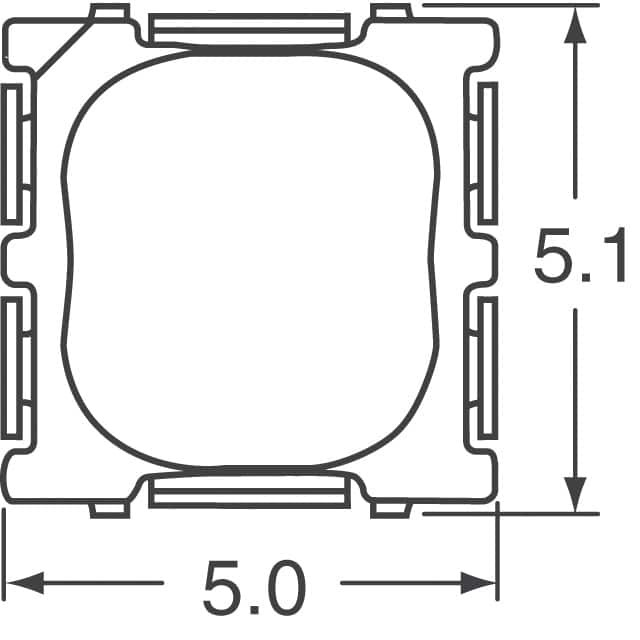

Dimension 0.201" L x 0.197" W (5.10mm x 5.00mm)
Height - Seated (Max) 0.110" (2.80mm)
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 475-2828-6,475-2828-2,LUWF65GKXLY5P7R,Q65110A7032,475-2828-1
Standard Package 700
Win Source Part Number 1073010-LUW F65G-KXLY-5P7R
Ultra Librarian 3D Model Ultra Librarian LUW F65G-KXLY-5P7R CAD Model

Description

The LUW F65G-KXLY-5P7R LED is a high-quality optoelectronic component that is widely used in electronic devices. It is supplied by ams-OSRAM USA Inc. and is part of the OSLUX series.

  • Packaging: Cut Tape
  • Height: 0.110 inches
  • Viewing Angle: 60 and 47 degrees
  • Forward Voltage: 3.6V
  • Current Test: 700mA
  • CCT: 6500K
  • Flux @ 85 degrees Celsius, Current-Test: 89lm
  • Flux @ 25 degrees Celsius, Current-Test: 111lm (71lm ~ 150lm)
  • Lumens/Watt @ Current-Test: 44 lm/W
  • Package: 2020
  • Mounting: Surface Mount
