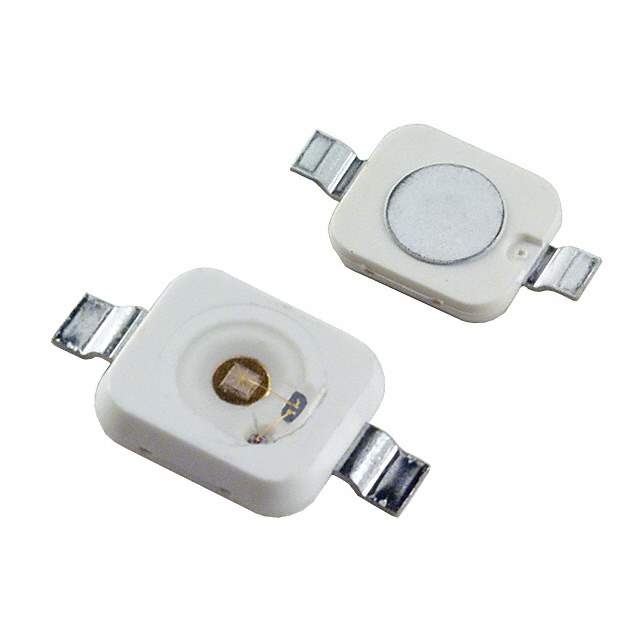

Same model may have multiple batches, images only for reference.

LV W5SG-GXHX-35-Z

Name: LV W5SG-GXHX-35-Z
Brand: OSRAM Opto Semiconductors Inc.
SKU: 1073118
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	LV W5SG-GXHX-35-Z
Manufacturer	OSRAM Opto Semiconductors Inc.
Catalog	LED Lighting - Color
Description	LED GOLDEN DRAGON GRN 505NM SMD / LED Lighting Color series Green 505nm (499nm ~ 511nm) 2-SMD, Gull Wing
Datasheet	LV W5SG-GXHX-35-Z Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Lighting - Color
Mfr	ams-OSRAM USA Inc.
Series	Golden DRAGON®
Package	Tape & Reel
Product Status	Obsolete
Color	Green
Wavelength	505nm (499nm ~ 511nm)
Current - Test	350mA
Voltage - Forward (Vf) (Typ)	3.8V
Lumens/Watt @ Current - Test	20 lm/W
Current - Max	500mA
Luminous Flux @ Current/Temperature	26lm (18lm ~ 33lm)
Temperature - Test	25°C
Viewing Angle	120°
Mounting	SMD (SMT)
Package / Case	2-SMD, Gull Wing
Supplier Device Package	SMD
Dimension	0.276" L x 0.236" W (7.00mm x 6.00mm)
Height - Seated (Max)	0.079" (2.00mm)
Thermal Resistance of Package	9°C/W
MSL Level	2A (4 Weeks)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.41.0000
Other Names	475-1199-2,Q65110A1620,LVW5SGGXHX35Z,475-1199-6,475-1199-1
Standard Package	800
Win Source Part Number	1073118-LV W5SG-GXHX-35-Z
Ultra Librarian 3D Model	Ultra Librarian LV W5SG-GXHX-35-Z CAD Model

Alternative Products

Description

The Golden DRAGON® LED lighting series from OSRAM Opto Semiconductors Inc. has the LV W5SG-GXHX-35-Z model, which comes in a tape and reel package.

Category: Optoelectronics and LED Lighting - Color
Color: green
Seated Height: 0.079 inches
Package Quantity: 800 pieces
Mounting Type: surface-mount device (SMD) or surface-mount technology (SMT)
Maximum Current Rating: 500mA
Viewing Angle: 120 degrees
Typical Forward Voltage: 3.8V
Luminous Flux @ Current/Temperature: 26lm (18lm ~ 33lm)
Thermal Resistance: 9°C/W
Status: The LV W5SG-GXHX-35-Z model is obsolete
Alternative Parts: 475-1199-2, Q65110A1620, and Q65110A1620.
