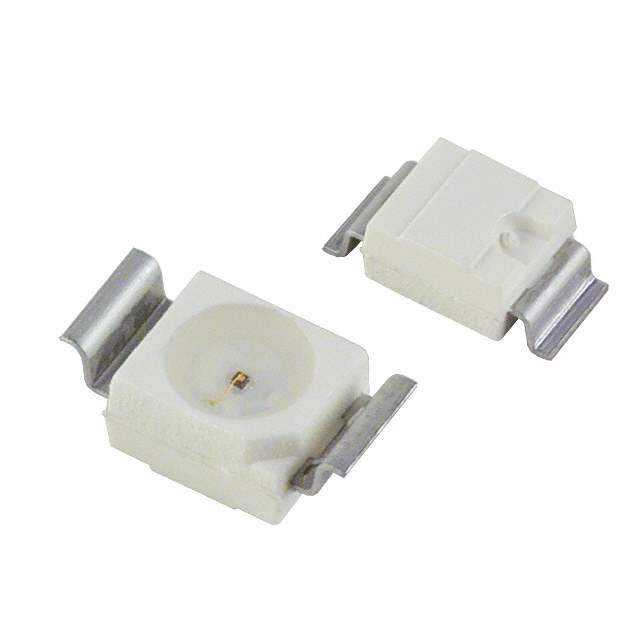

LY T776-R1S2-26 Real Image
Same model may have multiple batches, images only for reference.

LY T776-R1S2-26

Part No LY T776-R1S2-26
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog LED Indication - Discrete
Description LED YELLOW CLEAR SMD / Yellow 587nm LED Indication - Discrete 2V 2-SMD, Z-Bend
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr ams-OSRAM USA Inc.
Series TOPLED® - Reverse Gullwing
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Color Yellow
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 196mcd
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Dominant 587nm
Wavelength - Peak 591nm
Package / Case 2-SMD, Z-Bend
Supplier Device Package SMD
Dimension 3.20mm L x 2.80mm W
Height (Max) 2.10mm
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 475-1031-2,LYT776R1S226,475-1031-1,Q65110A1424
Standard Package 8,000
Win Source Part Number 984373-LY T776-R1S2-26
Ultra Librarian 3D Model Ultra Librarian LY T776-R1S2-26 CAD Model

Description

The 984373-LY T776-R1S2-26 is a TOPLED® - Reverse Gullwing yellow LED indication component designed for use in optoelectronics applications and supplied by ams-OSRAM USA Inc.

  • Package: tape and reel
  • Standard Package: 8,000
  • Mounting Configuration: SMD (SMT)
  • Viewing Angle: 120°
  • Millicandela Rating: 196mcd
  • Voltage-Forward: 2V
  • Wavelength-Dominant: 587nm
  • Wavelength-Peak: 591nm
  • Dimension: 3.20mm L x 2.80mm W
  • Height (max): 2.10mm
  • Lens Style: round with flat top
  • Lens Size: 2.40mm diameter
  • Other Names: 475-1031-2, LYT776R1S226, 475-1031-1, Q65110A1424
  • Product Status: obsolete
