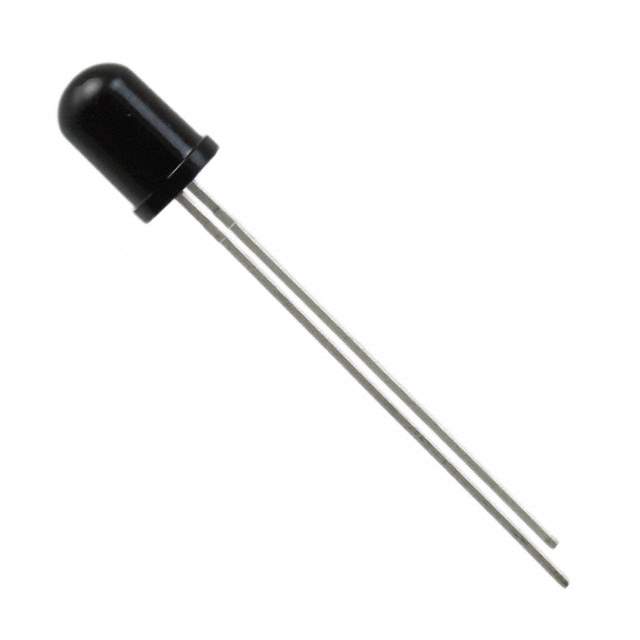

SFH 309 FA-5/6 Real Image
Same model may have multiple batches, images only for reference.

SFH 309 FA-5/6

Part No SFH 309 FA-5/6
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optical Sensors - Phototransistors
Description SENSOR PHOTO 900NM TOP VIEW RAD / Phototransistors 900nm Top View Radial, T-1 Lens
Datasheet
SFH 309 FA-5/6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Phototransistors
Mfr ams-OSRAM USA Inc.
Package Bulk
Voltage - Collector Emitter Breakdown (Max) 35 V
Current - Collector (Ic) (Max) 15 mA
Current - Dark (Id) (Max) 200 nA
Wavelength 900nm
Viewing Angle 24°
Power - Max 165 mW
Mounting Type Through Hole
Orientation Top View
Temperature Range - Operating -40°C ~ 100°C (TA)
Package / Case Radial, T-1 Lens
Base Product Number SFH 309
Other Names SFH309FA-5/6,475-3558,Q62702P5199,SFH 309 FA-5/6,SFH309FA-5/6
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.7080
Win Source Part Number 1234965-SFH 309 FA-5/6
Ultra Librarian 3D Model Ultra Librarian SFH 309 FA-5/6 CAD Model

Description

The SFH 309 FA-5/6 is an optical sensor phototransistor that has a viewing angle of 24° and a wavelength of 900nm.

  • Maximum Power: 165mW
  • Maximum Collector Current: 15mA
  • Temperature Range: -40°C to 100°C
  • Mounting: Through Hole
  • Manufacturer: ams-OSRAM USA Inc.
