Same model may have multiple batches, images only for reference.

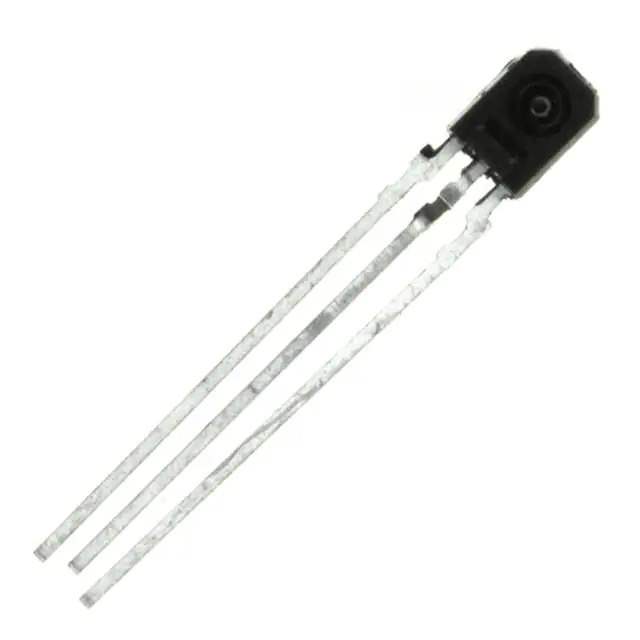

SFH 5140 F Real Image
Same model may have multiple batches, images only for reference.

SFH 5140 F

Part No SFH 5140 F
Manufacturer OSRAM Opto Semiconductors Inc.
Catalog Optical Sensors - Photo Detectors - Logic Output
Description IC SCHMITT TRIG W/LENS SIDELOOK
Datasheet
SFH 5140 F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photo Detectors - Logic Output
Mfr OSRAM Opto Semiconductors Inc.
Package Bulk
Product Status Obsolete
Wavelength 950nm
Type Photo Detector, Logic Output
Output Type Active Low
Package / Case Side View
Temperature Range - Operating -40°C ~ 85°C (TA)
Standard Package 1,600 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.9500
Win Source Part Number 846323-SFH 5140 F
Ultra Librarian 3D Model Ultra Librarian SFH 5140 F CAD Model

Description

The SFH 5140 F is a photo detector with logic output, designed for use in optical sensors.

  • Output Type: Active Low
  • Wavelength: 950nm
  • Package: Bulk
  • Temperature Range: -40°C to 85°C
  • Product Status: Obsolete
  • Manufacturer: OSRAM Opto Semiconductors Inc.
  • Standard Package Quantity: 1,600 pcs
