Same model may have multiple batches, images only for reference.

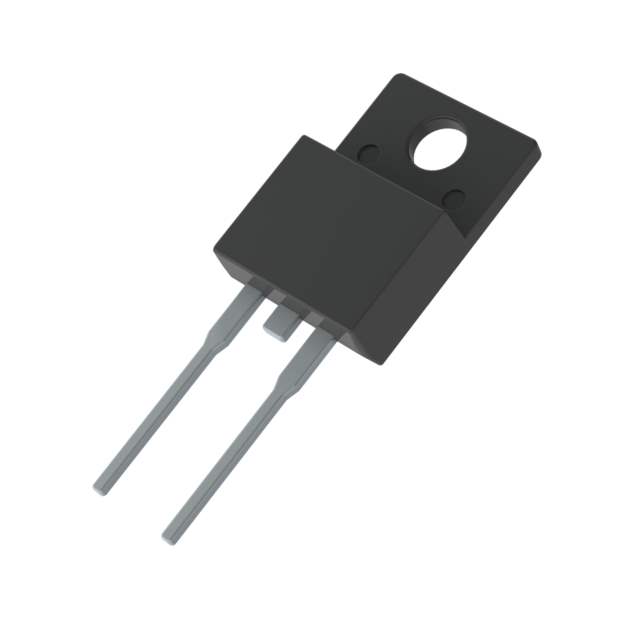

ER803F Real Image
Same model may have multiple batches, images only for reference.

ER803F

Part No ER803F
Manufacturer Others
Catalog Diodes, Rectifiers - Single
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Others
Technical Support Please contact us for details.
Popularity Low
Supply and Demand Status Balance
Win Source Part Number 123575-ER803F
Ultra Librarian 3D Model Ultra Librarian ER803F CAD Model

Description

ER803F - High-Performance Diode for Industrial Solutions

The ER803F diode is crafted for industrial and commercial applications requiring robust performance and efficiency. Its cutting-edge technology provides reliable results in demanding environments.

  • Applications:
    • AC/DC Converters
    • Industrial Power Supplies
    • Signal Demodulation
  • Features and Benefits:
    • High current handling for large-scale applications
    • Rugged construction for long-lasting use
    • Minimized power dissipation
  • Additional Details:
    • Maximum Forward Voltage: 3V
    • Current Capacity: 3A
    • Package Type: TO-220
