Same model may have multiple batches, images only for reference.

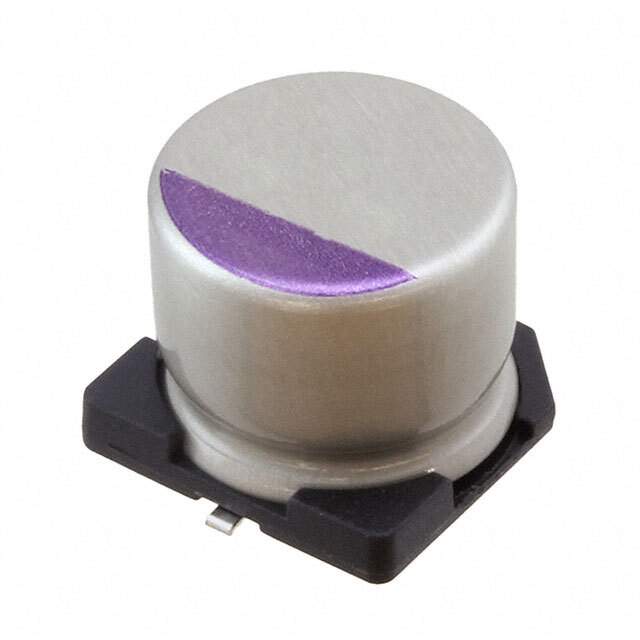

10SVQP56M Real Image
Same model may have multiple batches, images only for reference.

10SVQP56M

Part No 10SVQP56M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 56UF 20% 10V SMD
Datasheet
10SVQP56M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Type Polymer
Capacitance 56μF
Tolerance ±20%
Voltage Rating 10V
ESR 45 mOhm
Lifetime @ Temp. 1000 Hrs @ 125°C
Temperature Range - Operating -55°C to 125°C
Applications General Purpose
Ripple Current - Low Frequency 85mA @ 120Hz
Ripple Current - High Frequency 1.7A @ 100kHz
Height - Seated (Max) 0.236" (6.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Dimension Radial, Can - SMD
Win Source Part Number 1000926-10SVQP56M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 10SVQP56M CAD Model

Description

The Panasonic Electronic Components 1000926-10SVQP56M is a surface mount polymer capacitor designed for use in general-purpose applications.

  • Capacitance: 56μF
  • Tolerance: ±20%
  • Voltage Rating: 10V
  • Ripple Current: 85mA @ 120Hz and 1.7A @ 100kHz
  • ESR: 45 mOhm
  • Lifetime: 1000 hours @ 125°C
  • Package: Radial, can - SMD
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Supply and Demand Status: Balanced
