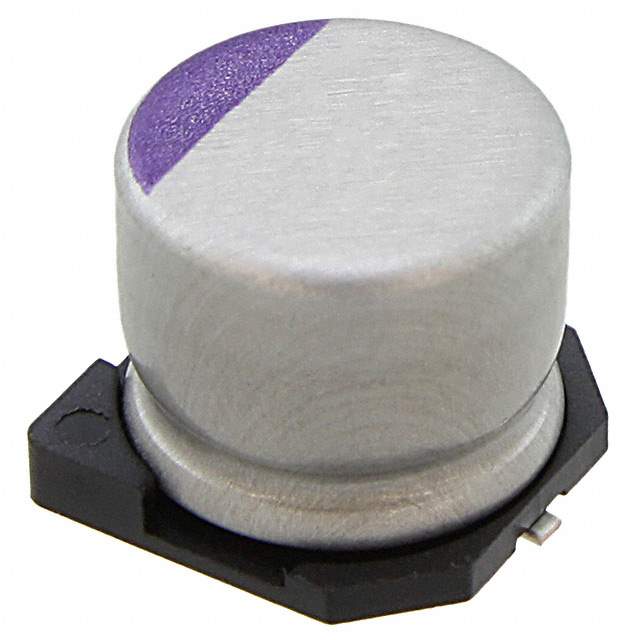

16SVPF270M

Part No 16SVPF270M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 270UF 20% 16V SMD  /  270 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 22mOhm 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVPF
Package Tape & Reel
Type Polymer
Capacitance 270 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 22mOhm
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 165 mA @ 120 Hz
Ripple Current @ High Frequency 3.3 A @ 100 kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.276" (7.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number 16SVPF
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.22.0020
Other Names P16480DKR,2266-16SVPF270M,P16480CT,P16480TR
Standard Package 1,000
Win Source Part Number 965033-16SVPF270M
Ultra Librarian 3D Model Ultra Librarian 16SVPF270M CAD Model

Description

The 965033-16SVPF270M is a polymer capacitor from the OS-CON™, SVPF series.

  • Capacitance: 270 µF
  • Voltage Rating: 16V
  • Tolerance: ±20%
  • ESR: 22mOhm
  • Lifetime: 5000 hours @ 105°C
  • Package: Radial, can - SMD
  • Mounting Technology: SMD (SMT)
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Height: 0.276" (7.00mm)
  • Manufacturer: Panasonic Electronic Components
  • Packaging: Tape and reel
