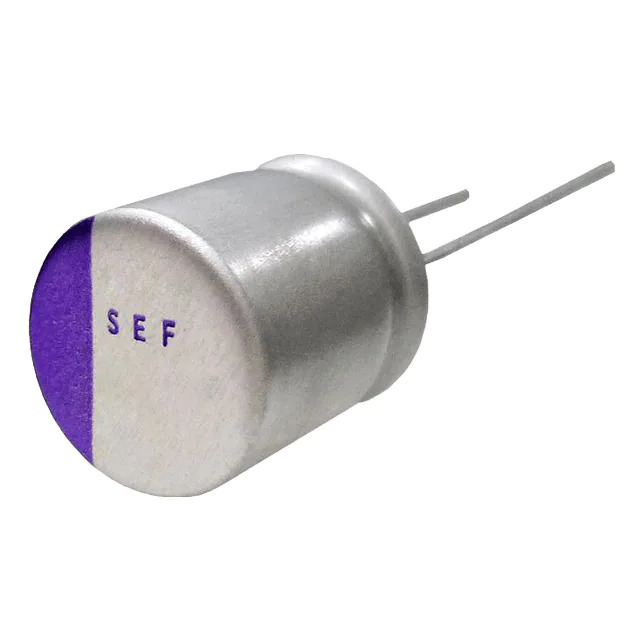

Same model may have multiple batches, images only for reference.

20SEF120M

Name: 20SEF120M
Brand: Panasonic
SKU: 1359531
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	20SEF120M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 120UF 20% 20V T/H / 120 µF 20 V Aluminum - Polymer Capacitors Radial, Can 25mOhm 1000 Hrs @ 125°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	OS-CON™, SEF
Package	Bulk
Product Status	Active
Type	Polymer
Capacitance	120 µF
Tolerance	±20%
Voltage - Rated	20 V
ESR (Equivalent Series Resistance)	25mOhm
Lifetime @ Temp.	1000 Hrs @ 125°C
Temperature Range - Operating	-55°C ~ 125°C
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	50.5 mA @ 120 Hz
Ripple Current @ High Frequency	1.01 A @ 100 kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	20SEF
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1359531-20SEF120M
Ultra Librarian 3D Model	Ultra Librarian 20SEF120M CAD Model

Alternative Products

Description

The 1359531-20SEF120M is an active aluminum polymer capacitor from Panasonic Electronic Components. It belongs to the Capacitors - Aluminum - Polymer Capacitors category and is a part of the OS-CON™, SEF series.

Series: OS-CON™, SEF
Capacitance: 120μF
Voltage Rating: 20V
ESR: 25mΩ
Lifetime: 1000 hours @ 125°C
Temperature Range: -55°C to 125°C
Mounting Type: Through-Hole
Package: Radial, Can
Lead Spacing: 0.098" (2.50mm)
Dimensions: 0.248" Dia (6.30mm) x 0.236" (6.00mm) height
