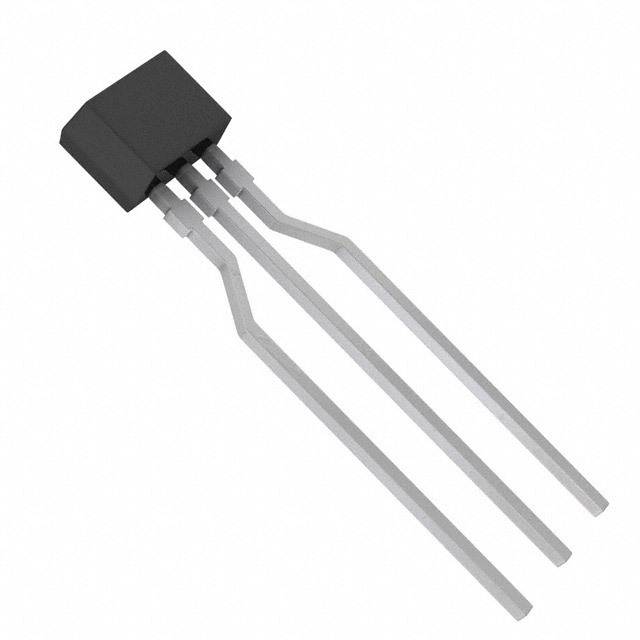

2SA1309AQA Panasonic
Same model may have multiple batches, images only for reference.

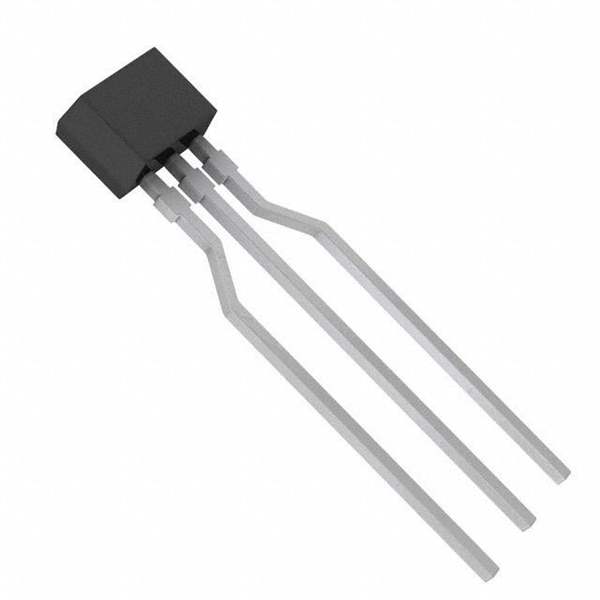

2SA1309AQA

Part No 2SA1309AQA
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS PNP 50V 0.1A NS-B1
Datasheet
2SA1309AQA Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Transistor Polarity PNP
Maximum Current Collector 100mA
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Max Vce (sat) 300mV @ 5mA, 50mA
Collector Cut-off Current(Max) 1μA
Typical Gain (hFE) (Min) 160 @ 2mA, 10V
Maximum Power Dissipation 300mW
Frequency - Transition 80MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package NS-B1
Win Source Part Number 110279-2SA1309AQA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2SA1309AQA CAD Model

Description

2SA1309AQA Description

The 2SA1309AQA is a PNP transistor designed for high-voltage and high-current applications. Its excellent electrical characteristics make it a preferred component for electronic engineers seeking reliability and efficiency.

Features and Benefits

  • High current output capacity
  • Voltage tolerance for diverse applications
  • Fast switching speeds
  • Stable thermal management capabilities

Applications

  • Power supply circuits
  • Voltage regulation devices
  • Inverter systems
  • High-power industrial equipment

The 2SA1309AQA's robust performance characteristics are perfect for industrial applications, making it a go-to choice for engineers pursuing high reliability under challenging conditions.
