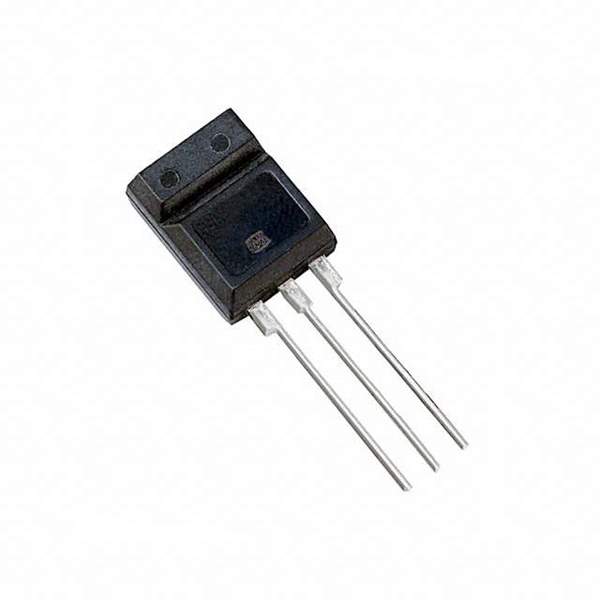

2SA20670QA Real Image
Same model may have multiple batches, images only for reference.

2SA20670QA

Part No 2SA20670QA
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS PNP 60V 3A MT-4
Datasheet
2SA20670QA Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Transistor Polarity PNP
Maximum Current Collector 3A
VCEO Maximum Collector-Emitter Breakdown Voltage 60V
Max Vce (sat) 800mV @ 375mA, 3A
Collector Cut-off Current(Max) 100μA
Typical Gain (hFE) (Min) 120 @ 1A, 4V
Maximum Power Dissipation 2W
Frequency - Transition 90MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package MT-4-A1
Win Source Part Number 053432-2SA20670QA
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2SA20670QA CAD Model

Description

2SA20670QA - PNP Transistor for General Purpose

The 2SA20670QA is a versatile PNP transistor suitable for various general-purpose electronic projects. It is known for its robustness and adaptability, providing consistent performance across diverse applications.

  • Features & Benefits:
    • Robust design for reliable operation
    • Wide range of operating temperatures
    • Low power consumption
  • Applications & Projects:
    • Switching regulators
    • Signal amplification
    • Battery-powered devices
    • Consumer electronics
  • Additional Details:
    • Collector-Emitter Voltage: -45V
    • Collector Current: -1.5A
    • Package Type: TO-92
