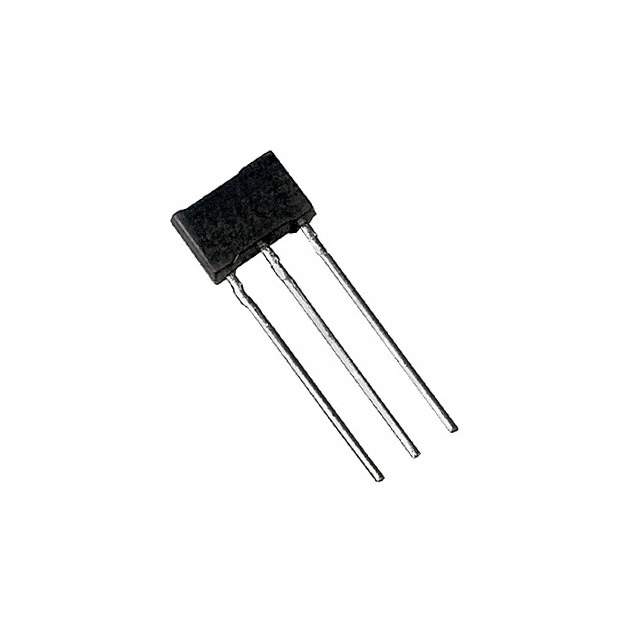

2SB13980QA

Get a Quote

Part No	2SB13980QA
Manufacturer	Panasonic
Catalog	RF Transistors (BJT)
Description	TRANS PNP 25V 5A MT-2 / Bipolar (BJT) Transistor PNP 25 V 5 A 120MHz 1 W Through Hole MT-2-A1
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - Bipolar (BJT) - Single
Mfr	Panasonic Electronic Components
Package	Cut Tape (CT),Tape & Box (TB)
Product Status	Obsolete
Transistor Type	PNP
Current - Collector (Ic) (Max)	5 A
Voltage - Collector Emitter Breakdown (Max)	25 V
Vce Saturation (Max) @ Ib, Ic	1V @ 100mA, 3A
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	120 @ 2A, 2V
Power - Max	1 W
Frequency - Transition	120MHz
Temperature Range - Operating	150°C (TJ)
Mounting Type	Through Hole
Package / Case	3-SIP
Supplier Device Package	MT-2-A1
Base Product Number	2SB1398
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0075
Other Names	2SB13980QATB-NDR,2SB1398QTA,2SB1398QTB,2SB1398-Q(TA),2SB13980QATB,2SB1398QCT-ND,2SB13980QACT,2SB13980QACT-NDR,2SB1398QTB-ND,2SB1398QCT
Standard Package	2,000
Win Source Part Number	989251-2SB13980QA
Ultra Librarian 3D Model	Ultra Librarian 2SB13980QA CAD Model

Alternative Products

Description

The 2SB1398 is a PNP bipolar transistor that is designed for use in single transistor amplifier applications by Panasonic Electronic Components.

Maximum Power: 1 W
Maximum Voltage Collector Emitter Breakdown: 25 V
Maximum Current Collector: 5 A
Vce Saturation: 1V @ 100mA, 3A
DC Current Gain: 120 @ 2A, 2V
Frequency Transition: 120MHz
Package: Cut tape and tape & box packages
Standard Package: 2,000
Mounting Type: Through-hole
Package/Case: 3-SIP
Status: Obsolete
ECCN: EAR99
MSL Level: 1 (unlimited)
HTSUS: 8541.29
