Introducing the PUMH30 from NXP

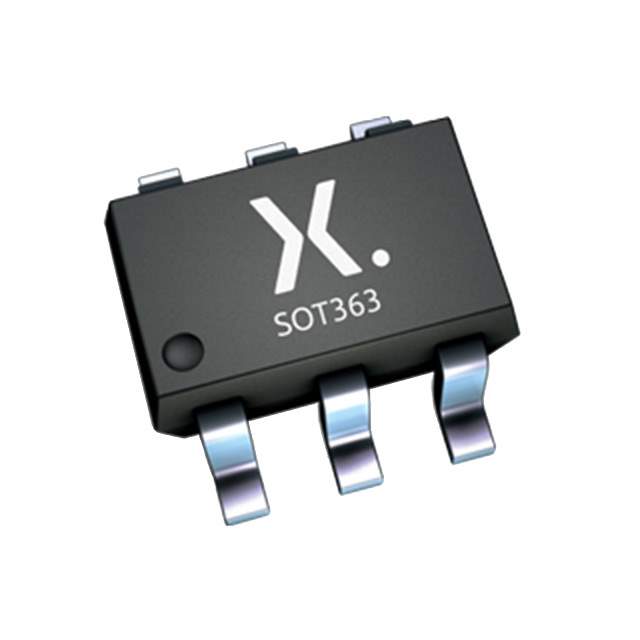

The PUMH30 is a cutting-edge NPN/NPN resistor-equipped double transistor designed by NXP Semiconductors, a leader in the industry. This innovative component is housed in a small Surface-Mounted Device (SMD) plastic package, specifically a SOT363 (SC-88) six-pin package, which is ideal for space-constrained applications.

The PUMH30 is particularly suitable for applications requiring dual NPN transistors with integrated bias resistors. These resistors facilitate the design of biasing networks and significantly reduce component count in electronic circuits. The device is optimized for use in digital applications, making it a perfect choice for switching operations and inverter circuits.

Key Features

• Integrated Bias Resistors: Comes with 10 kΩ input and 47 kΩ resistor, which simplifies circuit design and minimizes PCB space.
• High Collector Current: Offers a maximum collector current (Ic) of 100 mA, providing sufficient drive capability for a wide range of applications.
• Low Collector-Emitter Saturation Voltage: Ensures efficient operation with a low V<sub>CEsat at 100 mA, reducing power dissipation.
• High-Speed Switching: Features fast switching times, making it ideal for high-speed signal processing applications.
• Complementary Type: The device has a complementary PNP type, the PUMB30, which enables the design of push-pull stages with ease.

Applications

The versatility of the PUMH30 allows it to be used in a wide array of applications, including but not limited to:

• Digital applications
• Inverter circuits
• Interface circuits
• Driver stages in audio amplifiers
• Signal processing

With its robust performance and integrated resistors, the PUMH30 is an excellent choice for designers looking to streamline their circuit designs without compromising on functionality. Its reliability and efficiency make it a valuable component in any digital or analog signal processing task.
