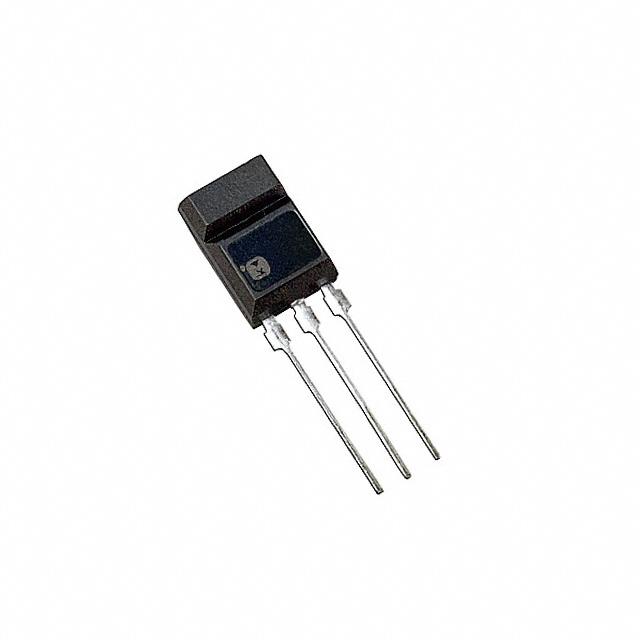

2SB14160RA Panasonic
Same model may have multiple batches, images only for reference.

2SB14160RA

Part No 2SB14160RA
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS PNP 60V 3A MT-3
Datasheet
2SB14160RA Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Transistor Polarity PNP
Maximum Current Collector 3A
VCEO Maximum Collector-Emitter Breakdown Voltage 60V
Max Vce (sat) 1.2V @ 375mA, 3A
Collector Cut-off Current(Max) 300μA
Typical Gain (hFE) (Min) 120 @ 1A, 4V
Maximum Power Dissipation 1.5W
Frequency - Transition 270MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package MT-3-A1
Win Source Part Number 1004298-2SB14160RA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2SB14160RA CAD Model

Description

The Panasonic Electronic Components 2SB14160RA is a high-quality PNP transistor that is designed for various electronic applications.

  • Supply and Demand Status: balance
  • Frequency Transition: 270MHz
  • Maximum Current Collector: 3A
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 60V
  • Maximum Power Dissipation: 1.5W
  • Material: MT-3-A1 material
  • Packaging: packaged as an ammo package
  • Mounting: mounted through hole
