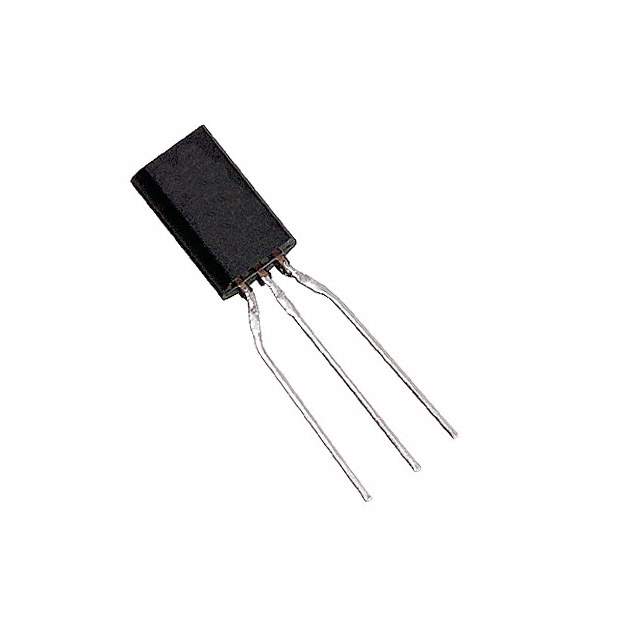

2SC15730Q Real Image
Same model may have multiple batches, images only for reference.

2SC15730Q

Part No 2SC15730Q
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS NPN 200V 0.07A TO-92L
Datasheet
2SC15730Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Bulk
Status Obsolete(EOL)
Transistor Polarity NPN
Maximum Current Collector 70mA
VCEO Maximum Collector-Emitter Breakdown Voltage 200V
Max Vce (sat) 1.2V @ 5mA, 50mA
Collector Cut-off Current(Max) 2μA (ICBO)
Typical Gain (hFE) (Min) 60 @ 5mA, 10V
Maximum Power Dissipation 1W
Frequency - Transition 80MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package TO-92L-A1
Win Source Part Number 1004329-2SC15730Q
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 2SC15730Q CAD Model

Description

The Panasonic Electronic Components 2SC15730Q is an obsolete NPN transistor with a maximum collector current of 70mA and a collector-emitter breakdown voltage of 200V.

  • Maximum Collector Current: 70mA
  • Collector-Emitter Breakdown Voltage: 200V
  • Maximum Saturation Voltage: 1.2V @ 5mA and 50mA
  • Collector Cut-off Current: 2μA
  • Typical Gain: 60 @ 5mA and 10V
  • Package: TO-92L-A1
  • Maximum Power Dissipation: 1W
