Same model may have multiple batches, images only for reference.

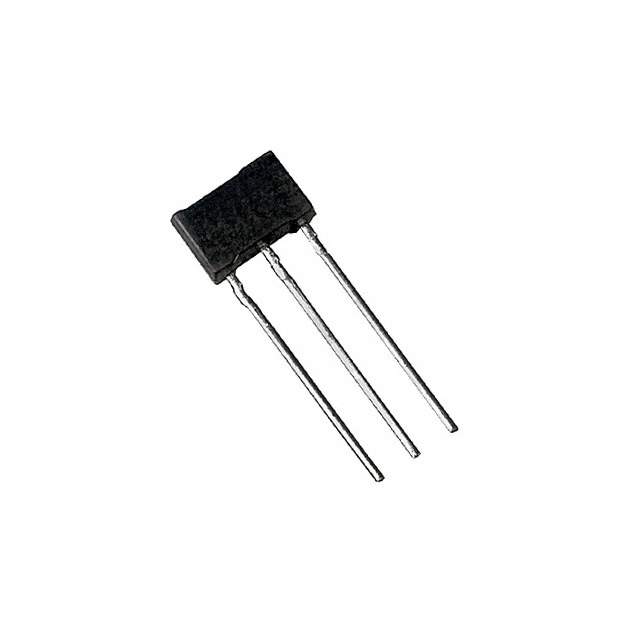

2SD1994ARA Real Image
Same model may have multiple batches, images only for reference.

2SD1994ARA

Part No 2SD1994ARA
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS NPN 50V 1A MT-2 / Trans GP BJT NPN 50V 1A 3-Pin MT-2-A1
Datasheet
2SD1994ARA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Tape in Box
Part Status Obsolete(EOL)
Transistor Type NPN
Current - Collector (Ic) (Maximum) 1A
Voltage - Collector Emitter Breakdown (Maximum) 50V
Vce Saturation (Maximum) @ Ib, Ic 400mV @ 50mA, 500mA
Current - Collector Cutoff (Maximum) 100nA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 120 @ 500mA, 10V
Power - Max 1W
Frequency - Transition 200MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package 3-SIP
Manufacturer Package MT-2-A1
Win Source Part Number 772270-2SD1994ARA
Popularity Medium
Supply and Demand Status Limited
Family Name 2SD1994AR
Introduction Date July 11, 2000
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian 2SD1994ARA CAD Model

Description

The Panasonic Electronic Components 2SD1994AR is a NPN transistor with a maximum power rating of 1W and a transition frequency of 200MHz.

  • Maximum Voltage Breakdown: 50V
  • Collector Current (Maximum): 1A
  • Mounting Type: Through Hole
  • Package: 3-SIP
  • Vce Saturation: 400mV @ 50mA, 500mA Ib, Ic
  • DC Current Gain (hFE): 120 @ 500mA, 10V Ic, Vce
  • Status: Obsolete (EOL)
  • Alternative Parts: 2SC4485, 2SC4485T, 2SD863D, NTE315
