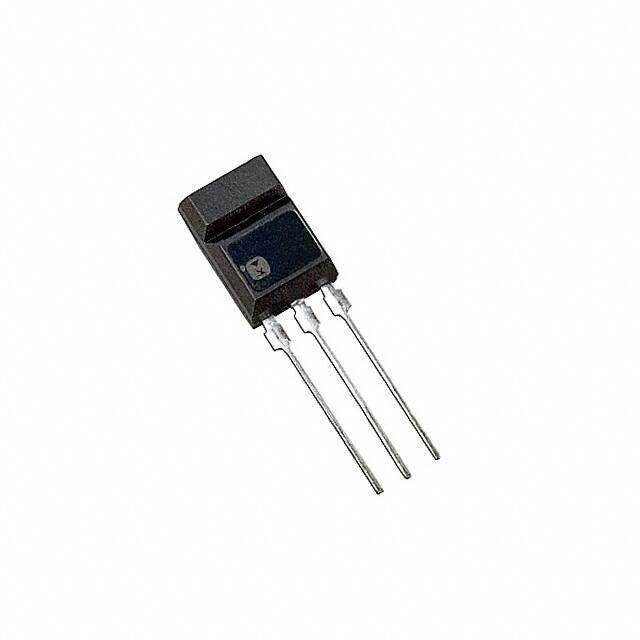

2SD22200RA Real Image
Same model may have multiple batches, images only for reference.

2SD22200RA

Part No 2SD22200RA
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS NPN DARL 80V 1A MT-3 / Bipolar (BJT) Transistor NPN - Darlington 80 V 1 A 150MHz 1.5 W Through Hole MT-3-A1
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr Panasonic
Package Cut Tape (CT)Tape & Box (TB)
Product Status Obsolete
Transistor Type NPN - Darlington
Current - Collector (Ic) (Max) 1 A
Voltage - Collector Emitter Breakdown (Max) 80 V
Vce Saturation (Max) @ Ib, Ic 1.8V @ 1mA, 1A
Current - Collector Cutoff (Max) 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 8000 @ 1A, 10V
Power - Max 1.5 W
Frequency - Transition 150MHz
Temperature Range - Operating 150°C (TJ)
Mounting Type Through Hole
Package / Case 3-SIP
Supplier Device Package MT-3-A1
Base Product Number 2SD2220
Standard Package 1,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0075
Win Source Part Number 855305-2SD22200RA
Ultra Librarian 3D Model Ultra Librarian 2SD22200RA CAD Model

Description

The 2SD2220 is a bipolar transistor from Panasonic.

  • Transistor Type: NPN Darlington
  • Maximum Power Rating: 1.5W
  • Voltage Breakdown: 80V
  • Maximum Collector Current: 1A
  • DC Current Gain: 8000
  • Transition Frequency: 150MHz
  • Mounting: Through-Hole
  • Package: 3-SIP
