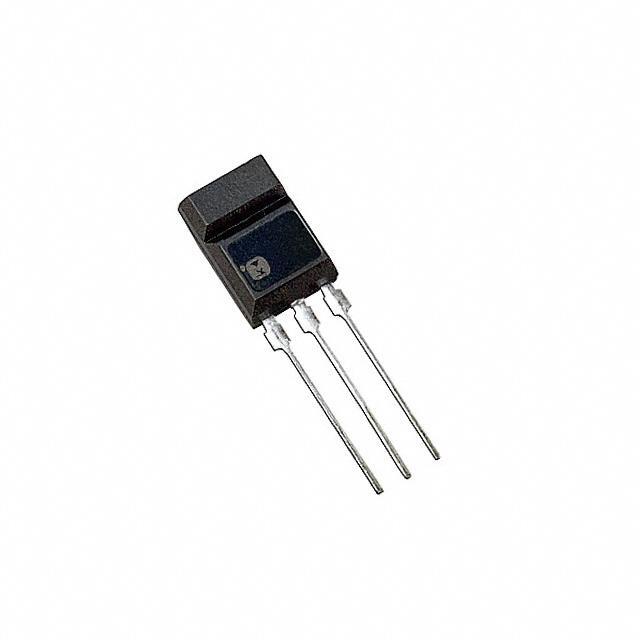

2SD24790RA Panasonic
Same model may have multiple batches, images only for reference.

2SD24790RA

Part No 2SD24790RA
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS NPN DARL 100V 2A MT-3
Datasheet
2SD24790RA Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Tape in Box
Part Status Obsolete(EOL)
Transistor Type NPN - Darlington
Current - Collector (Ic) (Maximum) 2A
Voltage - Collector Emitter Breakdown (Maximum) 100V
Vce Saturation (Maximum) @ Ib, Ic 1.5V @ 1mA, 1A
Current - Collector Cutoff (Maximum) 100nA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 8000 @ 1A, 10V
Power - Max 1.5W
Frequency - Transition 150MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package 3-SIP
Manufacturer Package MT-3-A1
Win Source Part Number 762888-2SD24790RA
Popularity Medium
Supply and Demand Status Limited
Family Name 2SD24790RA
Introduction Date June 13, 2002
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 2SD24790RA CAD Model

Description

The supply and demand status is limited. This product has a Win Source Part Number of 762888-2SD24790RA.

  • Package: 3-SIP
  • Maximum Power: 1.5W
  • Transistor Type: NPN - Darlington
  • Current - Collector (Ic) (Maximum): 2A
  • Voltage - Collector Emitter Breakdown (Maximum): 100V
  • DC Current Gain (hFE) (Minimum) @ Ic, Vce: 8000 @ 1A, 10V
