Same model may have multiple batches, images only for reference.

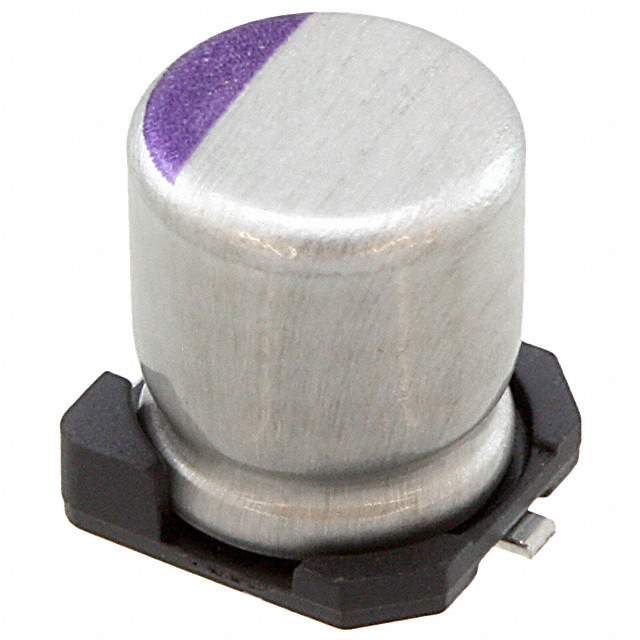

6SVPS120M Real Image
Same model may have multiple batches, images only for reference.

6SVPS120M

Part No 6SVPS120M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 120UF 20% 6.3V SMD / Cap Aluminum Polymer 120uF 6.3VDC 20% (6.3 X 5.9mm) SMD 0.022 Ohm 2570mA 5000h 105°C T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series OS-CON, SVPS
Packaging Reel package
Type Polymer
Capacitance 120μF
Tolerance ±20%
Voltage Rating DC 6.3V
Equivalent Series Resistance 22 mOhm
Lifetime @ Temp. 5000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Applications General
Ripple Current - Low Frequency 128.5mA @ 120Hz
Ripple Current - High Frequency 2.57A @ 100kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Maximum) 0.236" (6.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 799186-6SVPS120M
Popularity Medium
Supply and Demand Status Limited
Family Name SVPS
Introduction Date October 02, 2006
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 6SVPS120M CAD Model

Description

The Panasonic Electronic Components OS-CON, SVPS series capacitor is a polymer type capacitor from Panasonic Electronic Components.

  • Capacitance: 120μF
  • Tolerance: ±20%
  • Operating Temperature: -55°C to 105°C
  • Lifetime: 5000 hours @ 105°C
  • Mounting: SMD Radial Can
  • Ripple Current (Low Frequency): 128.5mA @ 120Hz
  • Ripple Current (High Frequency): 2.57A @ 100kHz
  • Voltage Rating DC: 6.3V
  • Equivalent Series Resistance: 22 mOhm
  • Estimated EOL Date: 2027
